Reassembly

U760E AUTOMATIC TRANSMISSION / TRANSAXLE: VALVE BODY ASSEMBLY: REASSEMBLY

1. INSTALL SHIFT SOLENOID VALVE SL4

(a) Coat the shift solenoid valve SL4 with ATF.





(b) Install the shift solenoid valve SL4 onto the transmission valve body assembly with the bolt and No. 4 solenoid lock plate.

Text in Illustration





Torque : 11 Nm (110 kgf-cm, 8 ft-lbf)

2. INSTALL SHIFT SOLENOID VALVE SL3

(a) Coat the shift solenoid valve SL3 with ATF.





(b) Install the shift solenoid valve SL3 onto the transmission valve body assembly with the bolt and No. 3 solenoid lock plate.

Text in Illustration





Torque : 11 Nm (110 kgf-cm, 8 ft-lbf)

3. INSTALL SHIFT SOLENOID VALVE SLU

(a) Coat the shift solenoid valve SLU with ATF.





(b) Install the shift solenoid valve SLU onto the transmission valve body assembly.

Text in Illustration





4. INSTALL SHIFT SOLENOID VALVE SLT

(a) Coat the shift solenoid valve SLT with ATF.

(b) Install the shift solenoid valve SLT onto the transmission valve body assembly with the bolt and lock plate.

Torque : 11 Nm (110 kgf-cm, 8 ft-lbf)

5. INSTALL SHIFT SOLENOID VALVE SL1

(a) Coat the shift solenoid valve SL1 with ATF.





(b) Install the shift solenoid valve SL1 onto the transmission valve body assembly.

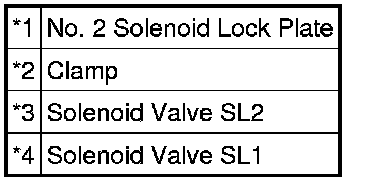

Text in Illustration





6. INSTALL SHIFT SOLENOID VALVE SL2

(a) Coat the shift solenoid valve SL2 with ATF.

(b) Install the shift solenoid valve SL2 onto the transmission valve body assembly with the 2 bolts, clamp and No. 2 solenoid lock plate.

Torque : 11 Nm (110 kgf-cm, 8 ft-lbf)

7. INSTALL SHIFT SOLENOID VALVE SL

(a) Coat the shift solenoid valve SL with ATF.





Text in Illustration





(b) Install the shift solenoid valve SL onto the transmission valve body assembly with the bolt.

Torque : 11 Nm (110 kgf-cm, 8 ft-lbf)

8. INSTALL TRANSMISSION WIRE Installation

9. INSTALL TRANSMISSION REVOLUTION SENSOR Installation
