Front Stabilizer Bar

FRONT SUSPENSION: FRONT STABILIZER BAR: INSPECTION

1. INSPECT FRONT STABILIZER LINK ASSEMBLY

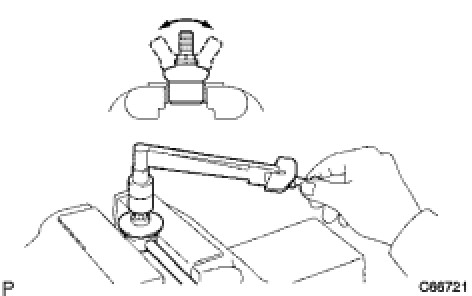

(a) Inspect the turning torque of the ball joint.





(1) Secure the front stabilizer link assembly in a vise using aluminum plates.

(2) Install the nut to the front stabilizer link assembly stud.

(3) Using a torque wrench, turn the stud continuously at a rate of 3 to 5 seconds per turn and take the torque reading on the 5th turn.

Turning torque:

0.05 to 1.96 N*m (0.6 to 19 kgf*cm, 0.5 to 17 in.*lbf)

If the turning torque is not within the specified range, replace the front stabilizer link assembly with a new one.

(b) Inspect the dust cover.

(1) Check that the dust cover is not cracked and that there is no grease on it.

If the dust cover is cracked or there is grease on it, replace the front stabilizer link assembly with a new one.
