Service Data





SPECIFICATIONS: 2AR-FE ENGINE MECHANICAL: SERVICE DATA

ENGINE

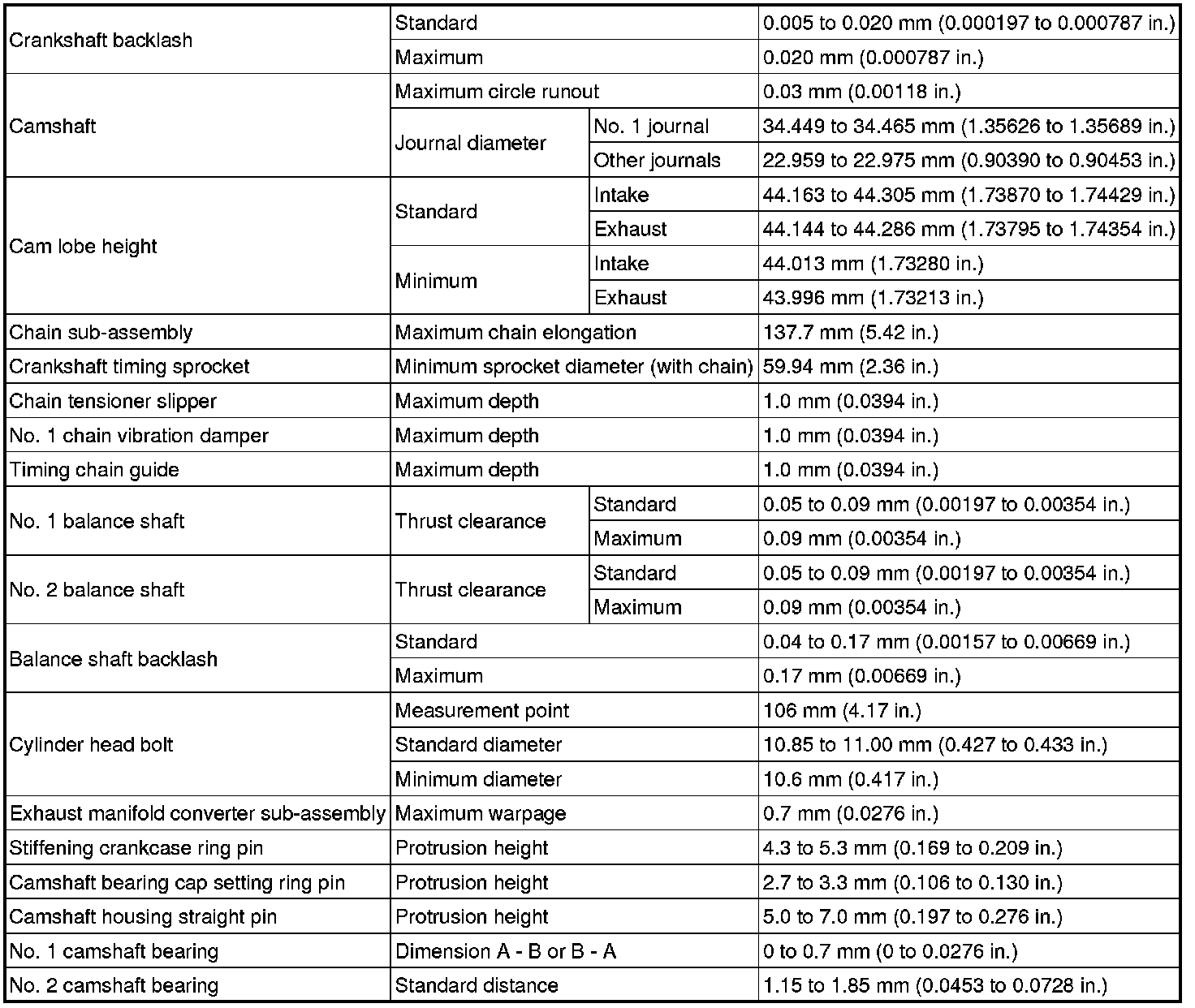

CYLINDER HEAD

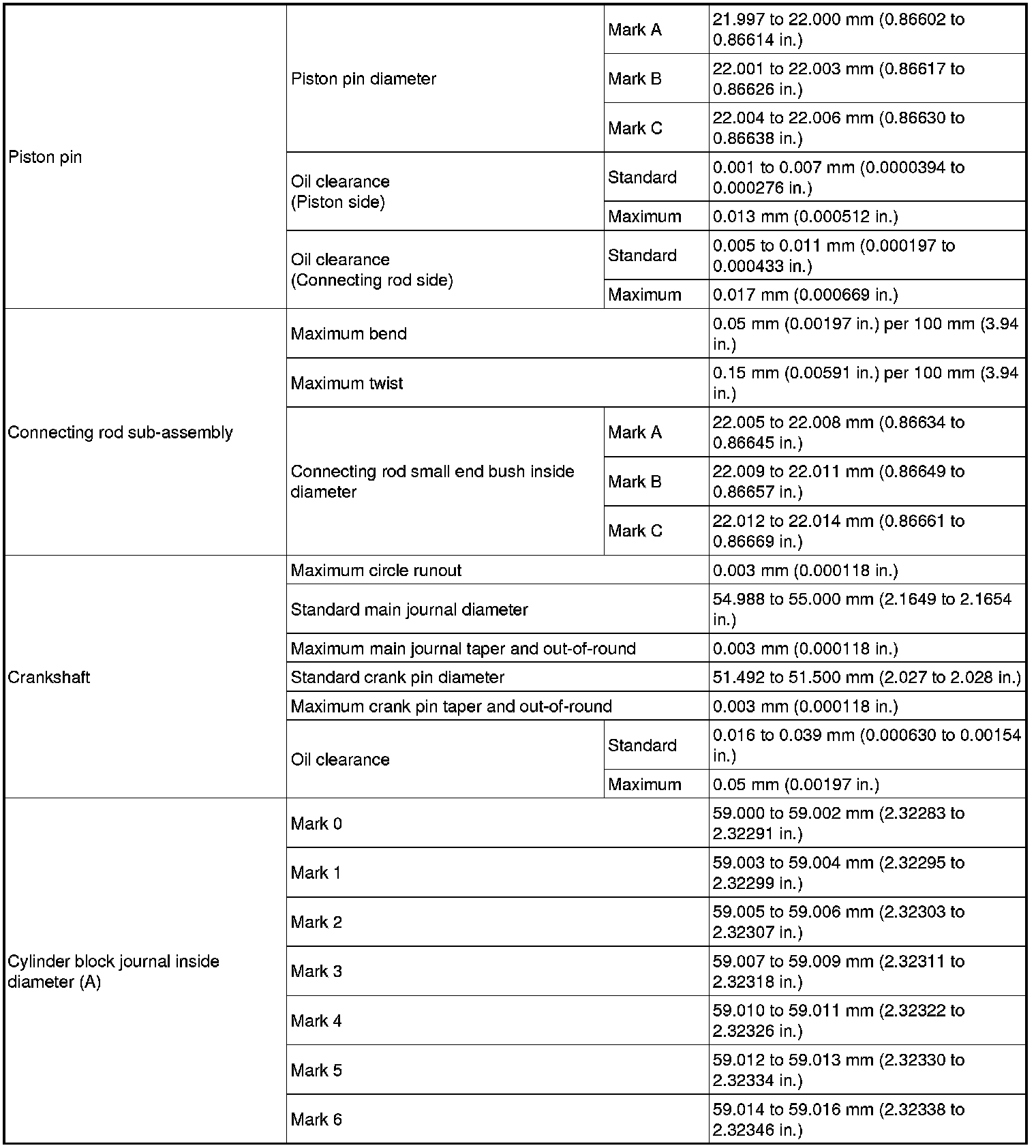

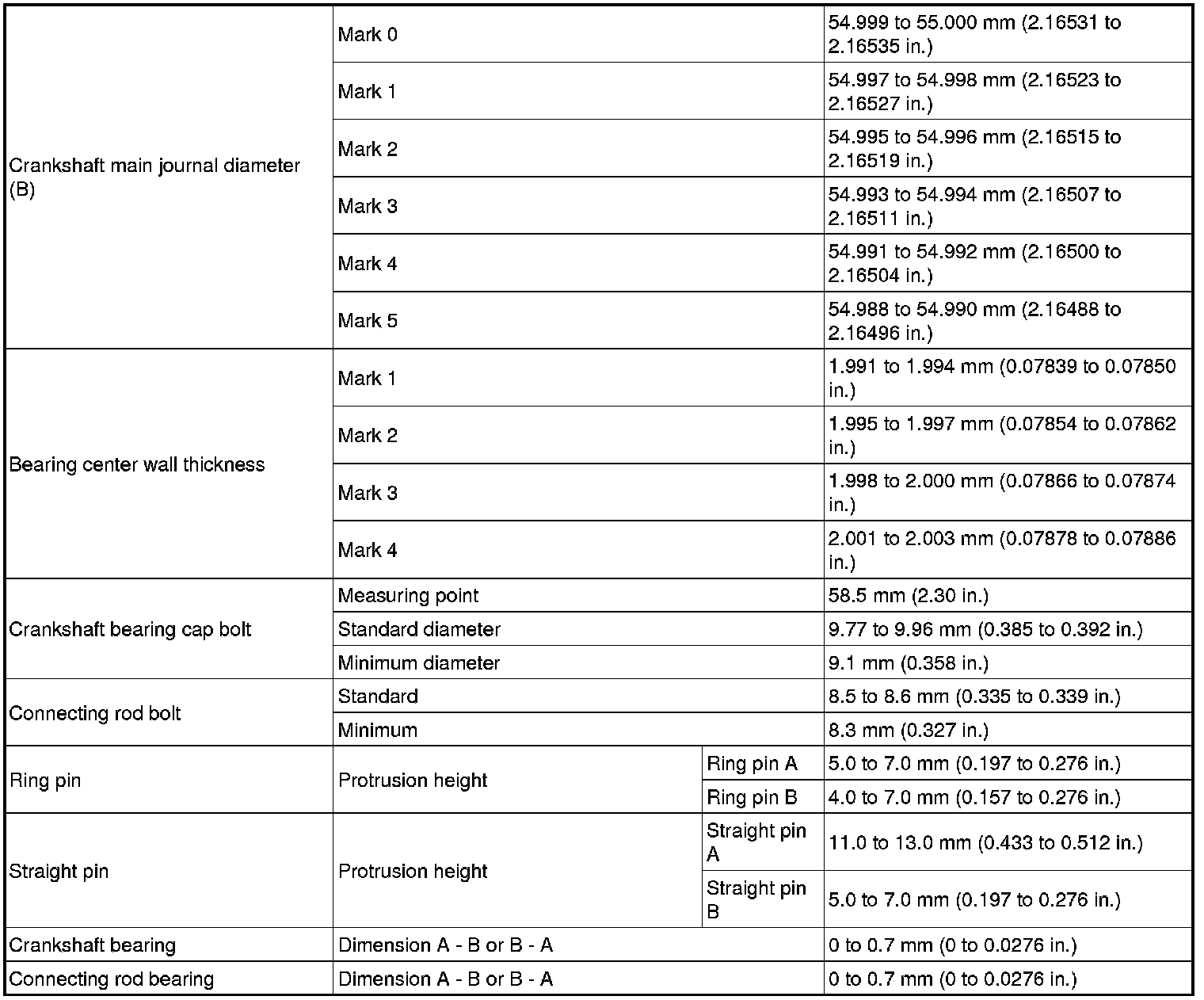

CYLINDER BLOCK

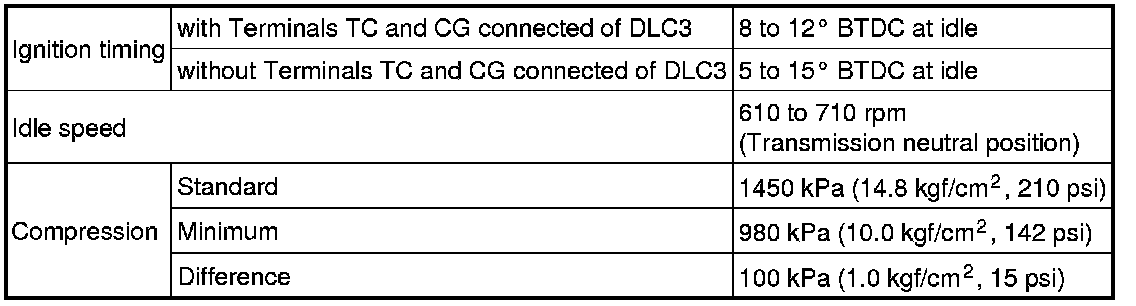

ENGINE UNIT
