Fluid Pan, A/T

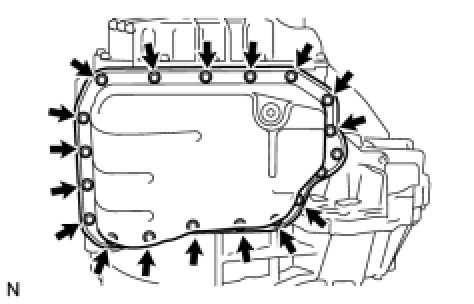

AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLYInstall the automatic transaxle oil pan sub-assembly with the automatic transaxle oil pan gasket onto the automatic transaxle assembly with the 17 bolts.
Torque 7.5 Nm (76 kgf-cm, 66 in-lbf)
Install the automatic transaxle oil pan sub-assembly with the automatic transaxle oil pan gasket onto the automatic transaxle assembly with the 17 bolts.
Torque 7.5 Nm (76 kgf-cm, 66 in-lbf)
