Removal

2AR-FE FUEL: FUEL PRESSURE PULSATION DAMPER: REMOVAL

1. PRECAUTION

NOTICE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notice before proceeding with work Service Precautions.

2. DISCHARGE FUEL SYSTEM PRESSURE

Fuel System: Precaution

3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

4. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY Removal

5. REMOVE AIR CLEANER CAP SUB-ASSEMBLY Removal

6. REMOVE FUEL TUBE SUB-ASSEMBLY





Text in Illustration





NOTICE:
Do not forcibly bend, kink or twist the fuel tube.

(a) Remove the fuel tube from the fuel hose clamp.

(b) Remove the No. 2 fuel pipe clamp.

(c) Wipe off any dirt on the fuel tube connector.

(d) Hold the fuel tube connector, and then install SST.

SST : 09268-21011

(e) Turn SST to align the retainer inside the fuel tube connector with the chamfered part of SST.

(f) Insert SST into the fuel tube connector and hold it. Then push the fuel tube connector toward SST.

(g) Mount the retainer of the fuel tube connector onto the chamfered part of SST.

(h) Slide SST and the fuel tube connector together toward the fuel tube until they make a "click" sound, and then disconnect the fuel tube.

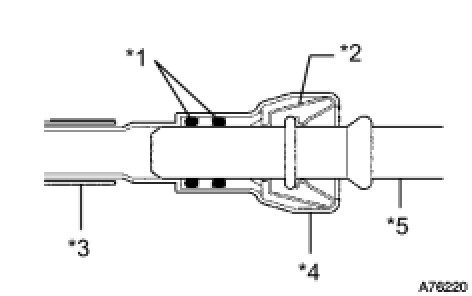

Text in Illustration





NOTICE:
* Check for foreign matter in the fuel tube around the fuel tube connector. Clean it if necessary. Foreign matter can affect the ability of the O-rings to seal the fuel tube connector and fuel pipe.
* Do not use any tools to separate the fuel tube connector and fuel pipe.
* Do not forcefully bend, kink or twist the fuel tube.
* Keep the fuel tube connector and fuel pipe free from foreign matter.
* If the fuel tube connector and fuel pipe are stuck together, pinch the fuel tube connector and turn it carefully to disconnect it.
* Put the fuel tube connector and fuel pipe in plastic bags to prevent damage and contamination.

7. REMOVE FUEL PRESSURE PULSATION DAMPER ASSEMBLY

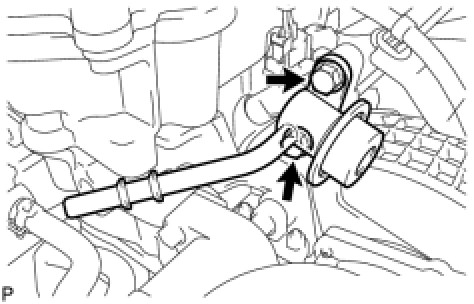

(a) Remove the 2 bolts and fuel pressure pulsation damper.





(b) Remove the O-ring from the fuel pressure pulsation damper.
