Installation

2AR-FE FUEL: FUEL PRESSURE PULSATION DAMPER: INSTALLATION

1. INSTALL FUEL PRESSURE PULSATION DAMPER ASSEMBLY

(a) Apply a light coat of gasoline or spindle oil to a new O-ring.

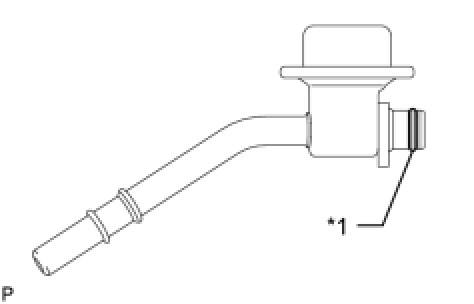

Text in Illustration





(b) Install the O-ring to the fuel pressure pulsation damper.

(c) Install the fuel pressure pulsation damper with the 2 bolts.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

NOTICE:
Make sure that the O-ring is not cracked or jammed when installing the damper.

2. INSTALL FUEL TUBE SUB-ASSEMBLY





Text in Illustration





(a) Connect the fuel tube.

(b) Push the fuel tube connector until it makes a "click" sound.

(c) Install a new No. 2 fuel pipe clamp.

3. INSTALL AIR CLEANER CAP SUB-ASSEMBLY Installation

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

5. INSPECT FOR FUEL LEAK Fuel System

6. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation
