Removal

HEATING / AIR CONDITIONING: REFRIGERANT LINE: REMOVAL

1. RECOVER REFRIGERANT FROM AIR CONDITIONING SYSTEM (for SIA Made) Service and Repair

2. REMOVE PIPING CLAMP (for SIA Made)

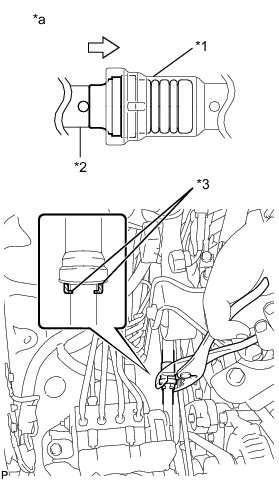

(a) While pressing the end of the suction hose sub-assembly into the end of the suction pipe sub-assembly, use pliers to squeeze together both sides of the piping clamp until it breaks apart.

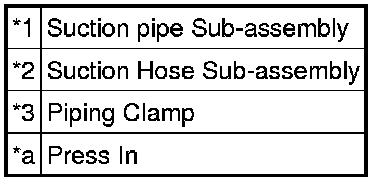

Text in Illustration





NOTICE:
Make sure that fragments of the piping clamp do not enter the piping.

(b) Separate the suction hose sub-assembly.

NOTICE:
Clean off any dirt or water near the ends of the suction hose sub-assembly and suction tube sub-assembly.

(c) Remove the 2 O-rings from the suction hose sub-assembly.

NOTICE:
Wrap the open ends of the separated suction pipe sub-assembly and suction hose sub-assembly with vinyl tape to prevent dirt or water from entering.
