Installation

HEATING / AIR CONDITIONING: REFRIGERANT LINE: INSTALLATION

1. INSTALL PIPING CLAMP (for SIA Made)

(a) Remove the vinyl tape from the open ends of the suction pipe sub-assembly and suction hose sub-assembly.

(b) Install a new piping clamp onto the suction hose sub-assembly.

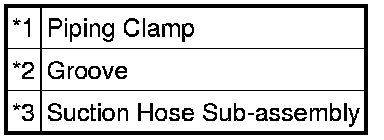

Text in Illustration





NOTICE:
Securely engage the inside step of the piping clamp in the suction hose groove.

(c) Thoroughly coat 2 new O-rings and the contact surface of the suction hose sub-assembly with compressor oil (ND-OIL8).

(d) Install the 2 O-rings onto the suction hose sub-assembly.

NOTICE:
Do not let foreign matter adhere to the O-ring or O-ring seal.

(e) Engage the suction tube sub-assembly and suction hose sub-assembly by matching the alignment marks.





Text in Illustration





NOTICE:
Insert them by holding the pipe, not the piping clamp.

(f) Securely insert the piping clamp to the point where the large diameter section of the piping clamp is covered by the suction pipe sub-assembly.





Text in Illustration





HINT
* When inserting, make sure that a click sound is heard.
* Check that the suction pipe is securely inserted by pulling it.

2. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT (for SIA Made) Service and Repair

3. WARM UP ENGINE (for SIA Made) Service and Repair

4. INSPECT FOR REFRIGERANT LEAK (for SIA Made) Service and Repair
