Installation

LIGHTING (EXT): HIGH INTENSITY DISCHARGE HEADLIGHT BULB: INSTALLATION

HINT
* Use the same procedure for the RH and LH sides.
* The procedure described below is for the LH side.

1. INSTALL DISCHARGE HEADLIGHT BULB

(a) Set the discharge headlight bulb to the headlight unit.

NOTICE:
Do not touch the bulb glass.

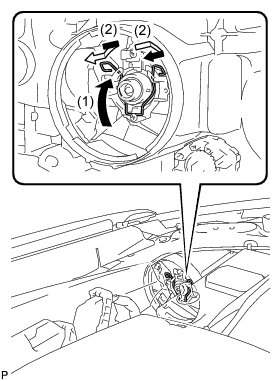

(b) Lock the set spring to install the discharge headlight bulb as shown in the illustration.

2. INSTALL HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY

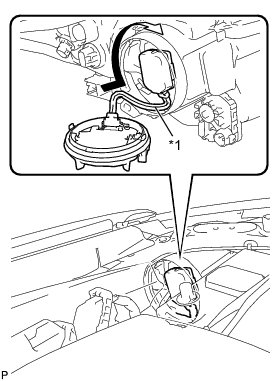

(a) Turn the socket of the headlight light control ECU sub-assembly in the direction indicated by the arrow shown in the illustration to connect it.

NOTICE:
* Check that the O-ring is installed on the headlight light control ECU sub-assembly.
* Check that the O-ring is not damaged or contaminated with foreign matter. If there is any damage, replace the O-ring with a new one.
* Do not pull the headlight light control ECU sub-assembly with the socket connected.

(b) Check that the red line on the output harness is not twisted and store the harness in the headlight assembly securely so that the output harness is not pinched.

Text in Illustration

(d) for LH Side:

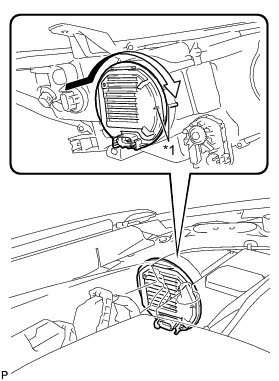

(1) Turn the headlight light control ECU sub-assembly in the direction indicated by the arrow shown in the illustration until the lock marks are aligned to install it.

Text in Illustration

NOTICE:
* To prevent incomplete installation, make sure to fully push in and turn the headlight light control ECU sub-assembly until the lock marks are aligned.
* Do not apply excessive force using a tool.

(e) for RH Side:

(1) Turn the headlight light control ECU sub-assembly in the direction indicated by the arrow shown in the illustration until the lock marks are aligned to install it.

Text in Illustration

NOTICE:
* To prevent incomplete installation, make sure to fully push in and turn the headlight light control ECU sub-assembly until the lock marks are aligned.
* Do not apply excessive force using a tool.

(f) Connect the connector.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
