System Diagram
System Diagram

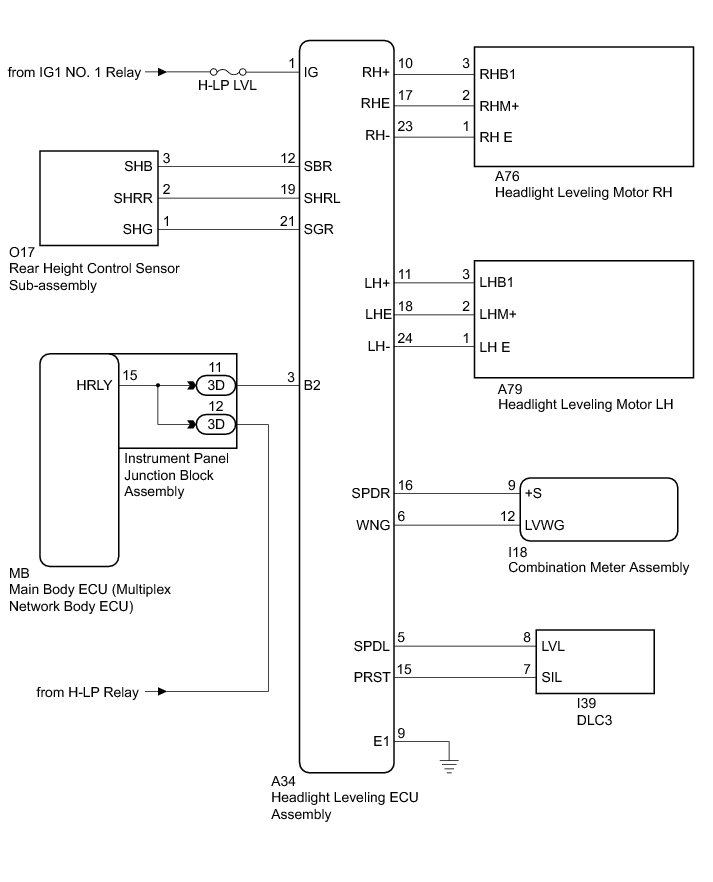

LIGHTING (EXT): AUTOMATIC HEADLIGHT BEAM LEVEL CONTROL SYSTEM: SYSTEM DIAGRAM
