Reassembly

HEATING / AIR CONDITIONING: CONDENSER: REASSEMBLY

1. INSTALL COOLER DRYER

(a) Using pliers, install a new cooler dryer to the modulator.

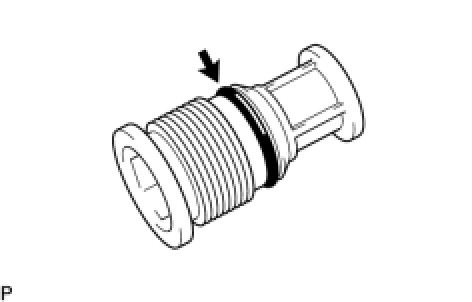

(b) Apply a sufficient amount of compressor oil to a new O-ring and the fitting surfaces of the cap.





Compressor oil:

ND-OIL 8 or equivalent

(c) Using a 14 mm straight hexagon wrench, install the cap to the modulator.





Text in Illustration





Torque : 2.9 Nm (30 kgf-cm, 26 in-lbf)

NOTICE:
* Keep the O-ring and O-ring fitting surfaces free from dirt or foreign matter.
* Do not use any compressor oil other than ND-OIL 8 or equivalent.
