54 - 57 - Position of Parts In Body
54 - 57 - Position of Parts In Body

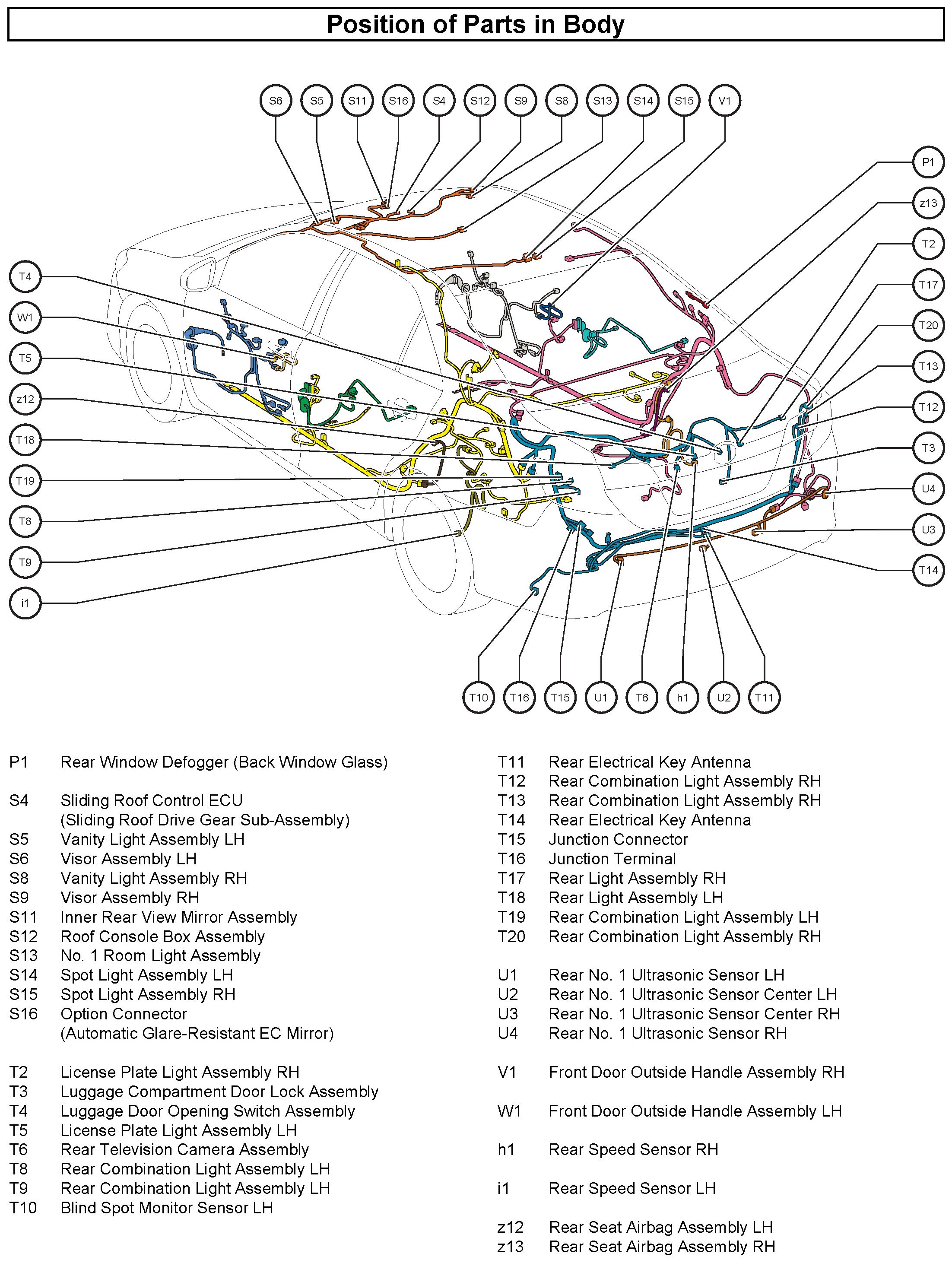

54 - Position of Parts in Body:

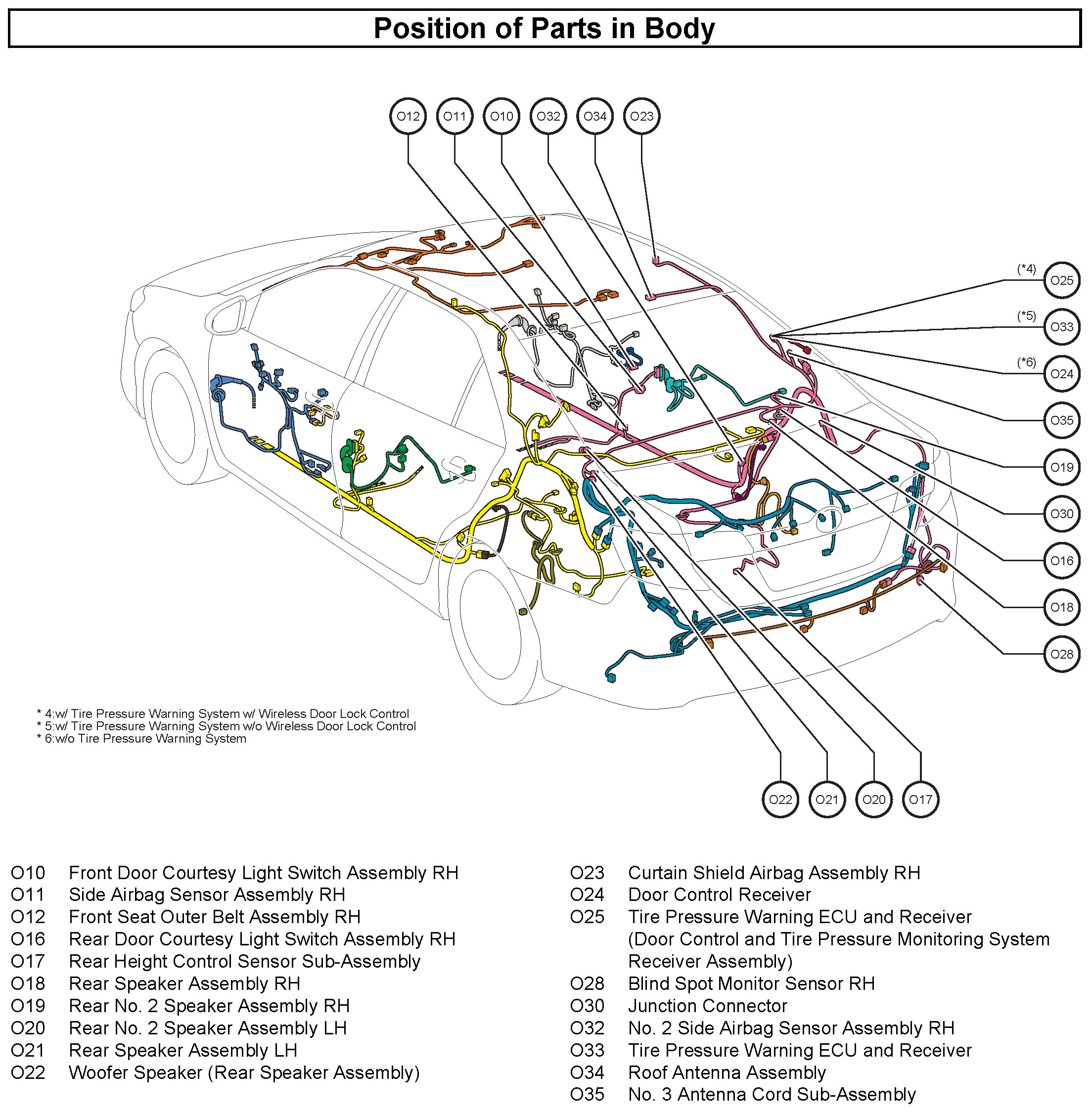

55 - Position of Parts in Body:

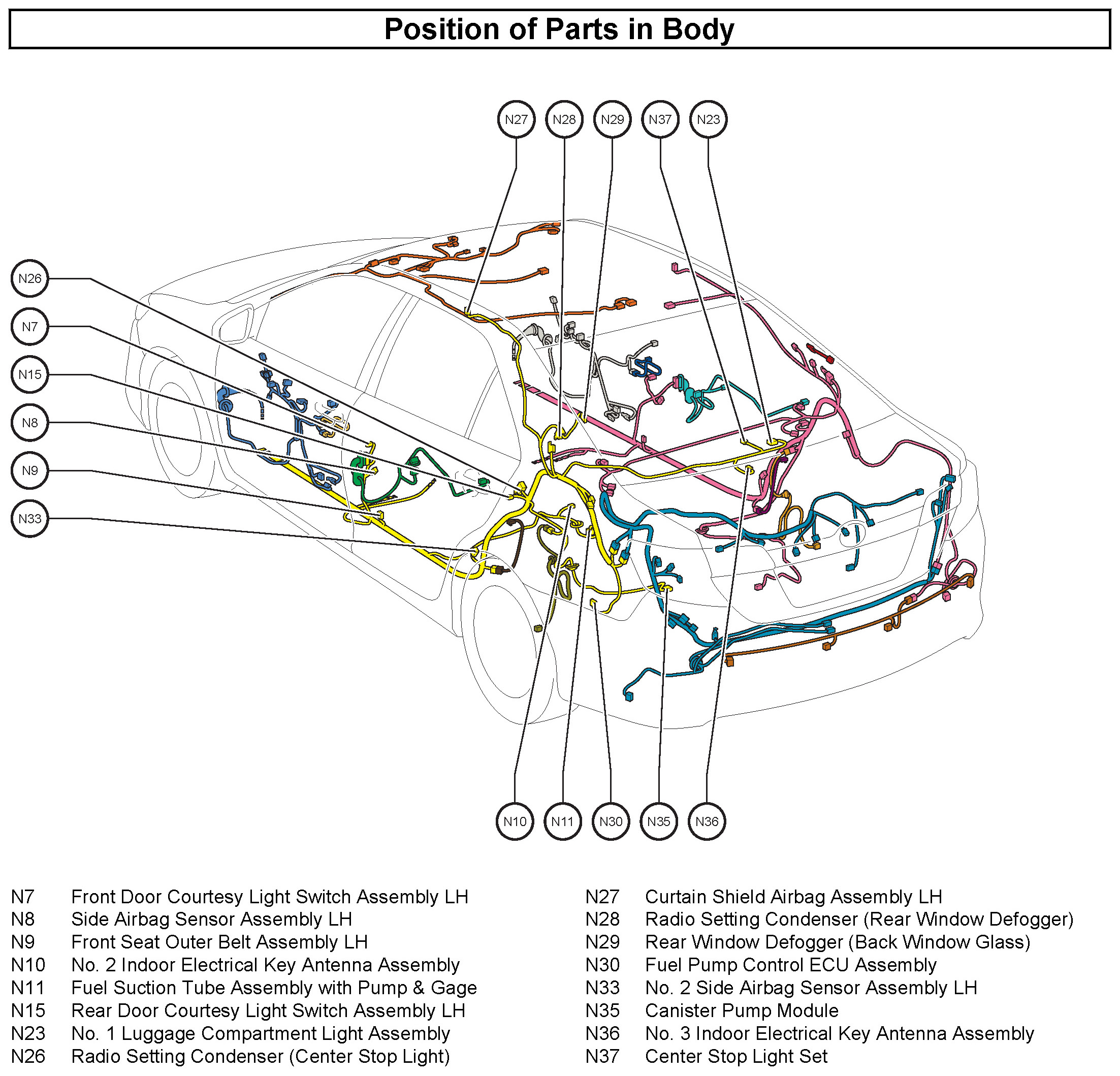

56 - Position of Parts in Body:

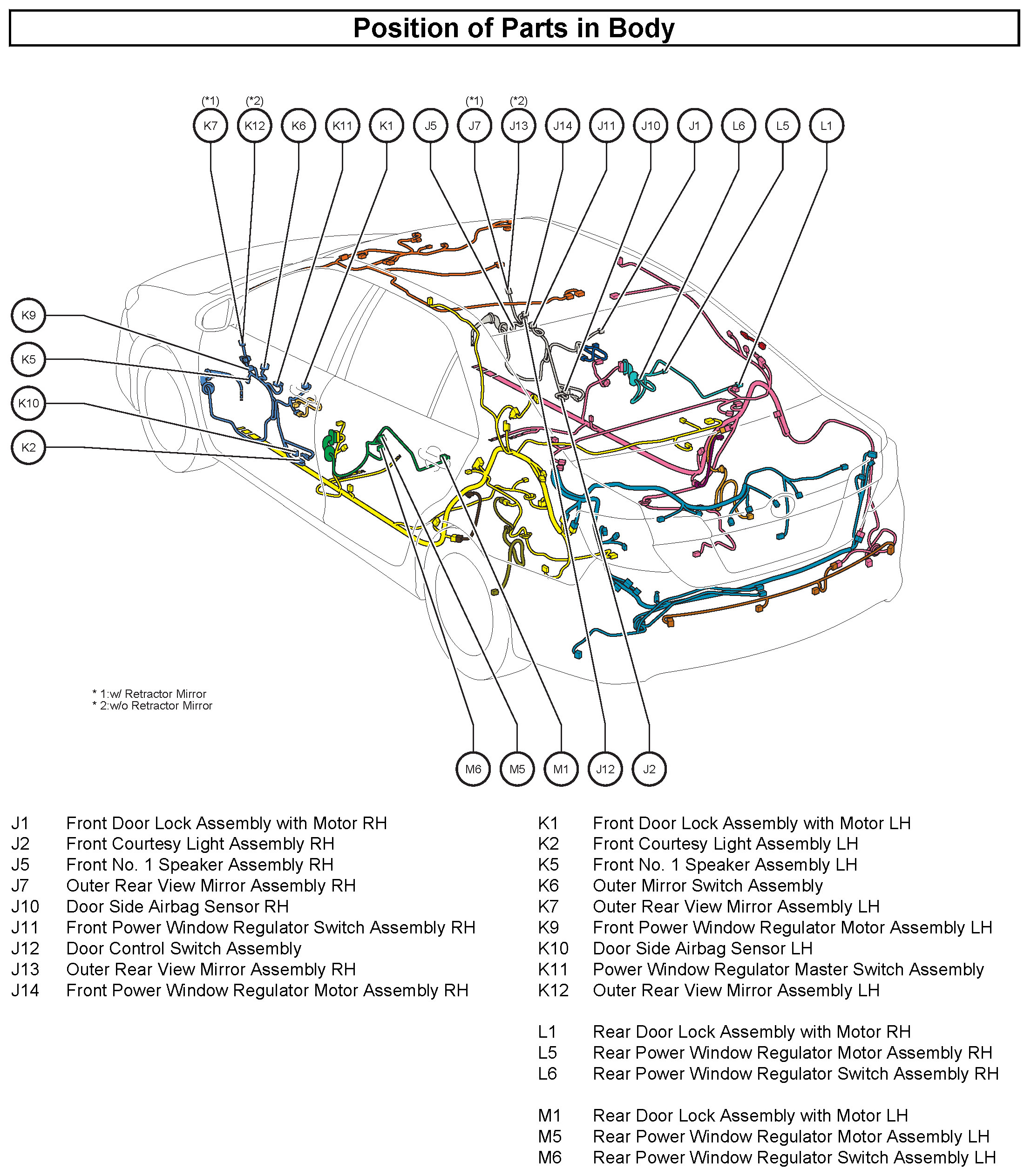

57 - Position of Parts in Body:
