Pinout Values and Diagnostic Parameters

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VEHICLE STABILITY CONTROL SYSTEM: TERMINALS OF ECU

1. TERMINALS OF ECU

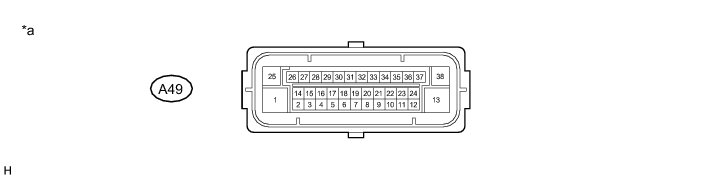

Text in Illustration









2. TERMINAL INSPECTION

(a) Disconnect the connector and measure the voltage and resistance on the wire harness side.





Text in Illustration





HINT
The voltage cannot be measured with the connector connected to the skid control ECU (brake actuator assembly) because the connector is watertight.

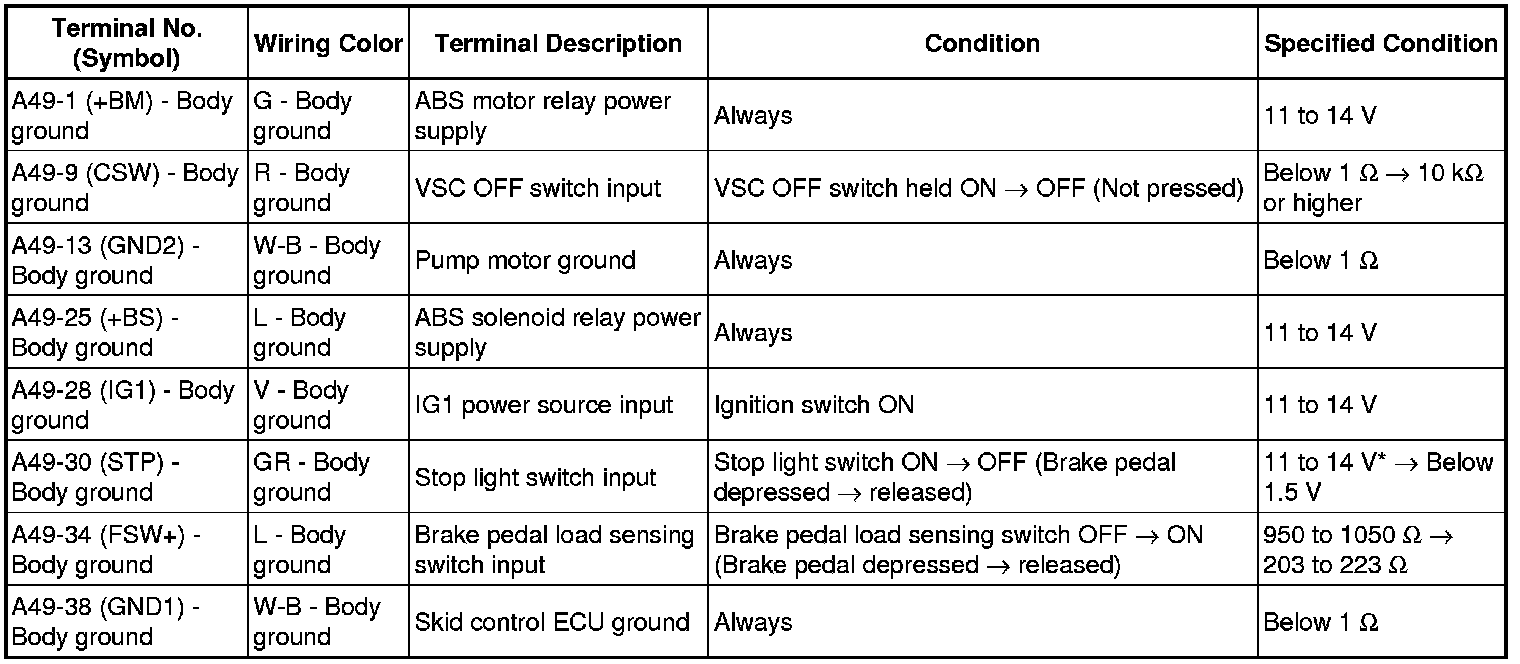

Standard





HINT
*: The standard voltage value varies depending on the +BS terminal voltage value. The standard voltage is 85% of the +BS terminal voltage.
