Cowl: Service and Repair

ASSEMBLY REPLACEMENT







1. REMOVAL







REMOVAL POINT

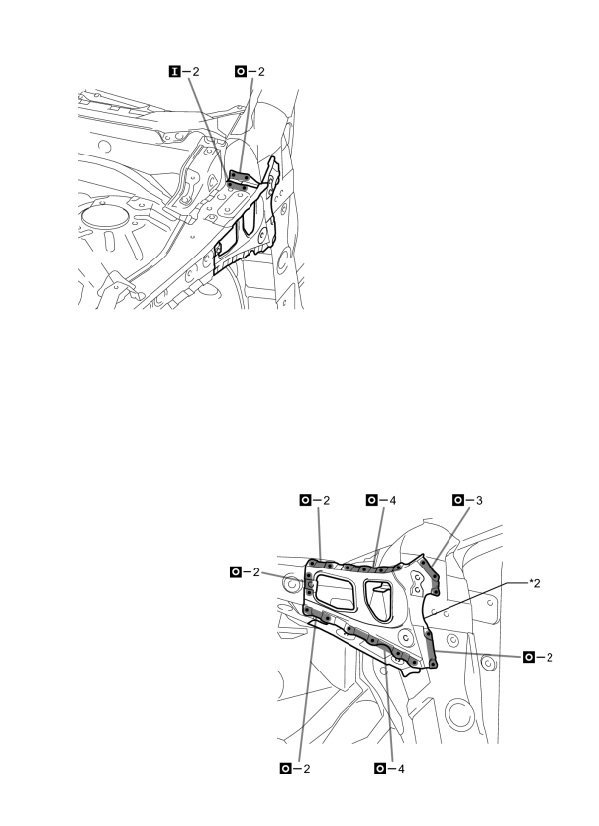

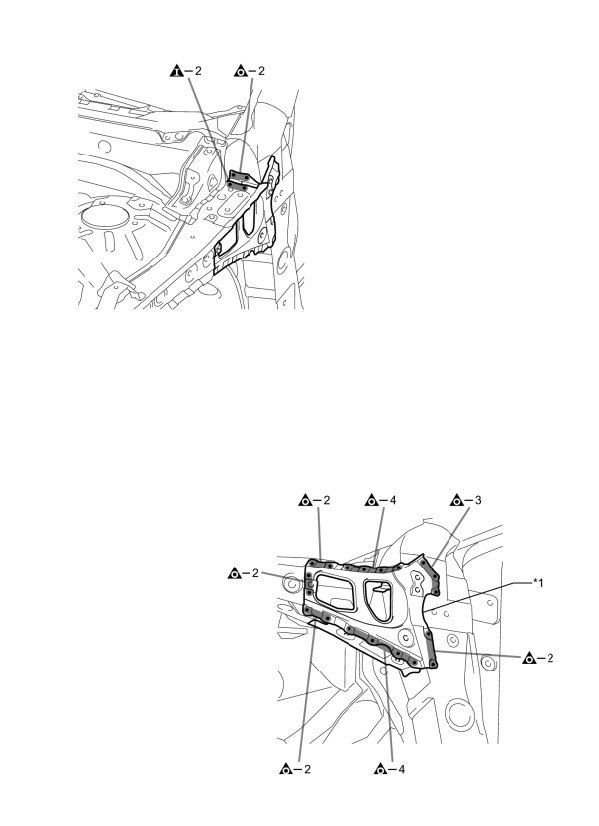

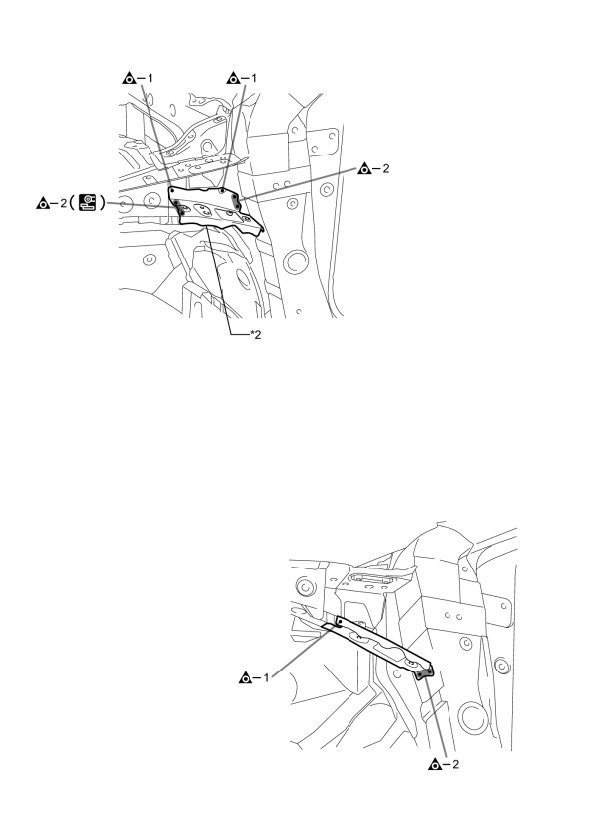

1. After removing the *1, remove the *2.










2. INSTALLATION







INSTALLATION POINT

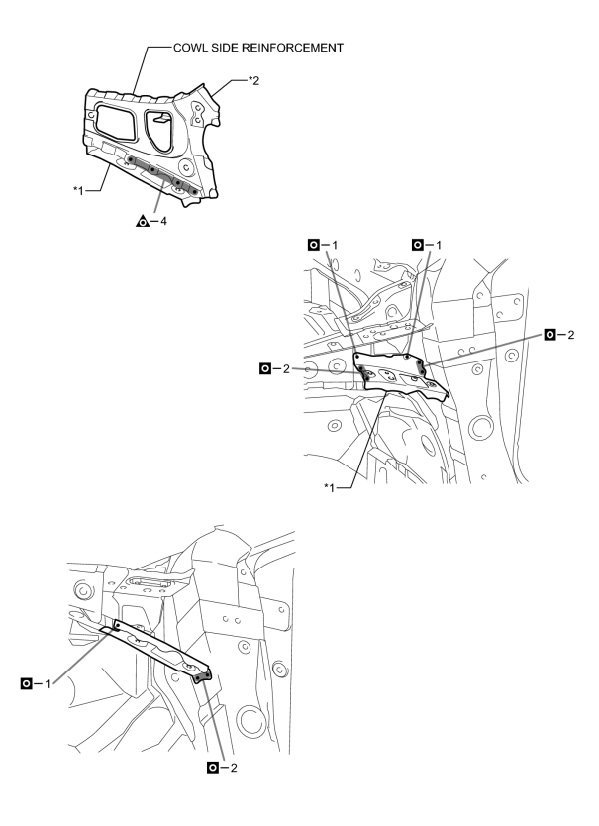

1. Divide a new part of cowl side reinforcement in to *1 and *2 at the weld points. After welding the *1 to the vehicle side, install the *2.
2. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.
