Power Mirror Control System
>>
System Diagram

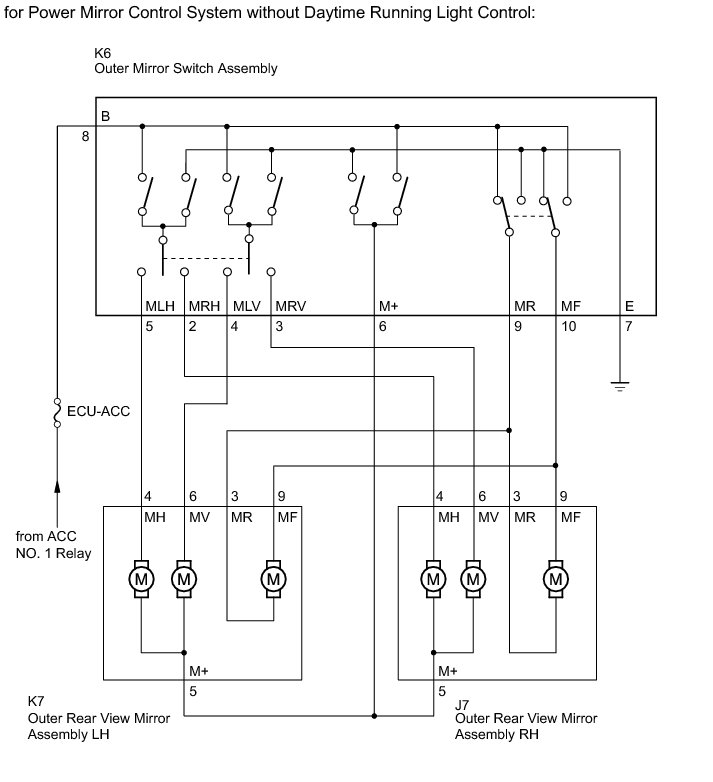

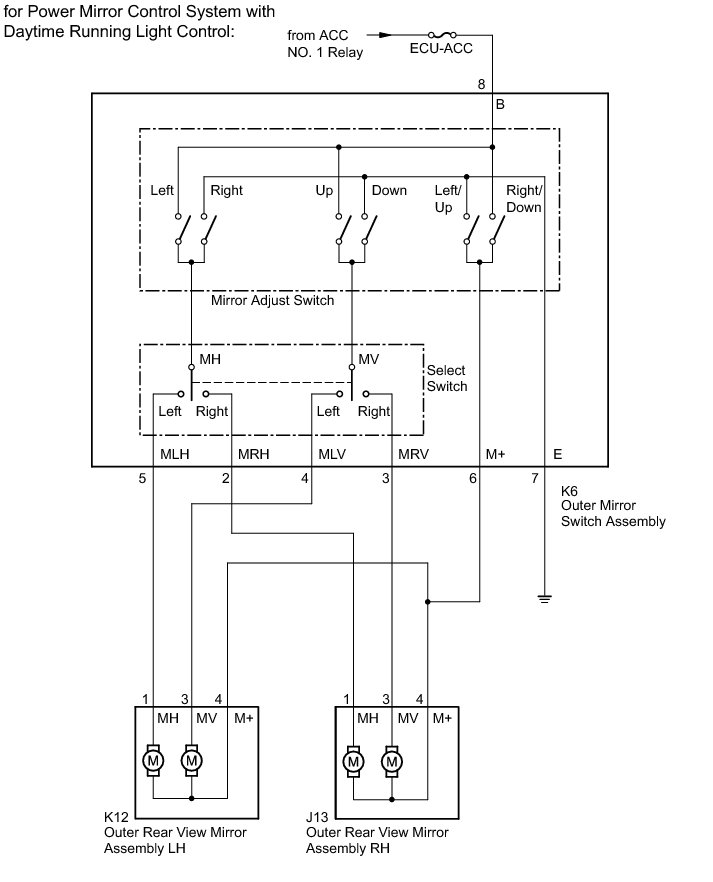

System Diagram
MIRROR (EXT): POWER MIRROR CONTROL SYSTEM: SYSTEM DIAGRAM

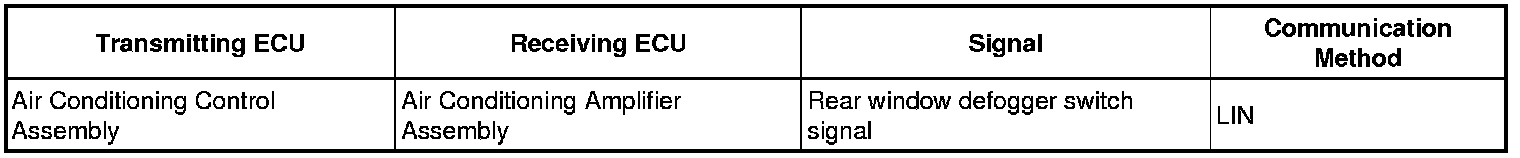

Communication Table
