Reassembly

INTERIOR PANELS / TRIM: ROOF HEADLINING: REASSEMBLY

1. INSTALL NO. 2 ROOF SILENCER PAD (w/o Sliding Roof)

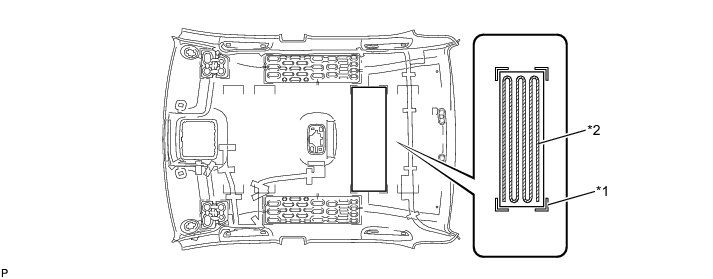

(a) Align the markings on the roof headlining assembly with the No. 2 roof silencer pad and install the pad using hot-melt glue as shown in the illustration.





Text in Illustration





2. INSTALL NO. 1 ROOF WIRE

(a) Apply double-sided tape as shown in the illustration.





Text in Illustration





(b) Peel off the release paper from the double-sided tape.

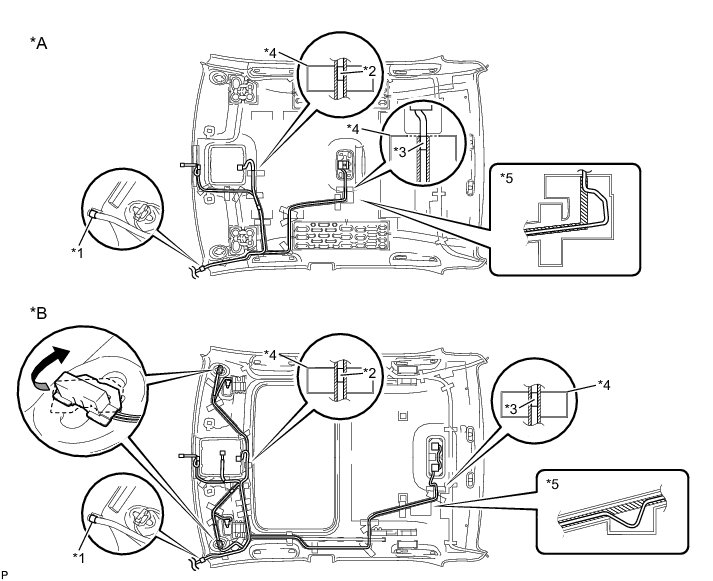

(c) Attach the No. 1 roof wire along the double-sided tape so that the marking surface of the wire harness faces downward.

(d) Align the pink marking tape (A) on the No. 1 roof wire with the vehicle front side tab on the roof headlining.

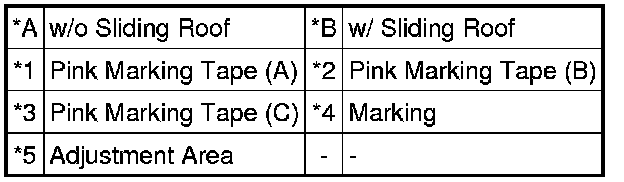

Text in Illustration





(e) w/ Sliding Roof:

(1) Turn the visor connector LH clockwise approximately 45° to install it to the roof headlining assembly.

(f) Align the edge of the pink marking tape (A) on the No. 1 roof wire with the markings on the roof headlining.

(g) Attach the No. 1 roof wire, starting from the pink marking tape (B) to the pink marking tape (A) while aligning it with the double-sided tape.

NOTICE:
* Securely attach the No. 1 roof wire before the hot-melt glue cools.
* If any of the No. 1 roof wire is left loose, this will cause abnormal noise. Make sure to attach the No. 1 roof wire without leaving any of it loose.

(h) w/ Sliding Roof:

(1) Turn the visor connector RH clockwise approximately 45° to install it to the roof headlining assembly.

(2) Attach the No. 1 roof wire, starting from the visor connector RH to the pink marking tape (B) while aligning it with the double-sided tape.

NOTICE:
* Securely attach the No. 1 roof wire.
* If any of the No. 1 roof wire is left loose, this will cause abnormal noise. Make sure to attach the No. 1 roof wire without leaving any of it loose.

(i) Align the edge of the pink marking tape (C) on the No. 1 roof wire with the markings on the roof headlining.

(j) Attach the No. 1 roof wire, starting from the pink marking tape (A) to the pink marking tape (C) while aligning it with the double-sided tape.

NOTICE:
* Securely attach the No. 1 roof wire.
* If any of the No. 1 roof wire is left loose, this will cause abnormal noise. Make sure to attach the No. 1 roof wire without leaving any of it loose.

HINT
Secure the extra length of the No. 1 roof wire in the adjustment area.

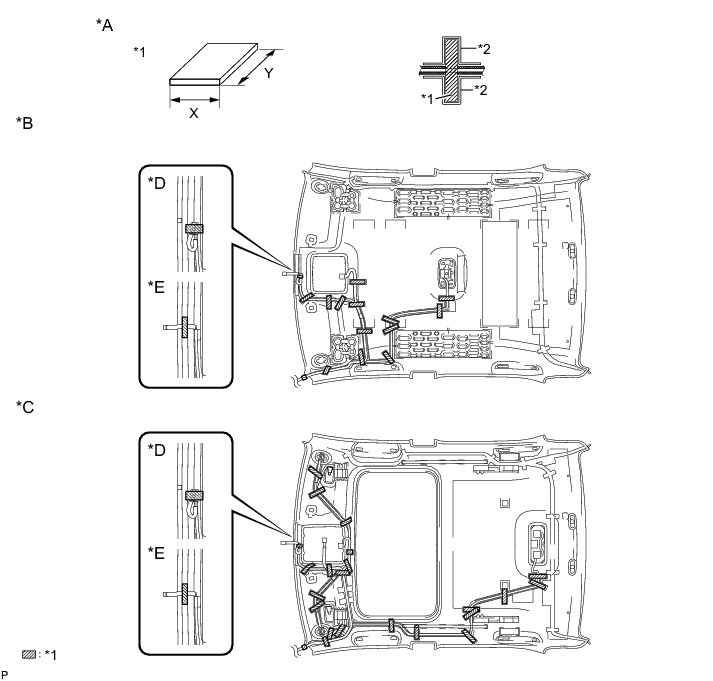

(k) Apply adhesive tape by aligning it with the markings on the roof headlining as shown in the illustration.

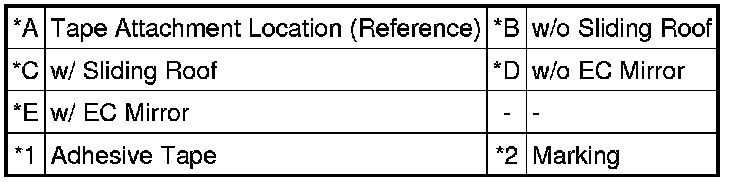

Text in Illustration





Adhesive Tape Size:

X
20 mm (0.787 in.)

Y
80 mm (3.15 in.)

3. INSTALL NO. 2 ANTENNA CORD SUB-ASSEMBLY Installation

4. INSTALL NO. 4 ROOF SILENCER PAD (w/o Sliding Roof)

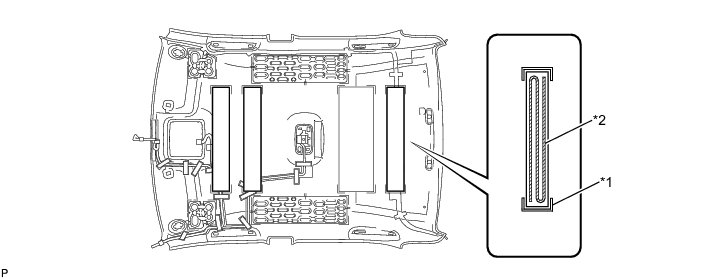

(a) Align the markings on the roof headlining assembly with the 3 No. 4 roof silencer pads and install the pads using hot-melt glue as shown in the illustration.





Text in Illustration





5. INSTALL VANITY LIGHT ASSEMBLY (w/ Sliding Roof)

(a) Install the vanity light assembly Installation.

HINT
Use the same procedure for the other vanity light.
