Removal

EXTERIOR PANELS / TRIM: NAME PLATE: REMOVAL

HINT
When removing the name plates or emblem, heat the vehicle body and name plates or emblem using a heat light.

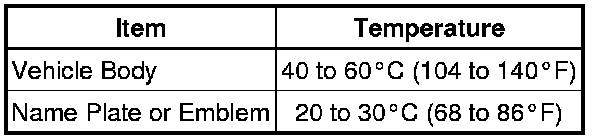

Heating Temperature





NOTICE:
Do not heat the vehicle body, name plates or emblem excessively.

1. REMOVE LUGGAGE COMPARTMENT DOOR EMBLEM

(a) Put protective tape around the luggage compartment door emblem.





Text in Illustration





(b) Using a moulding remover, separate the double-sided tape and disengage the 2 pins to remove the luggage compartment door emblem.

NOTICE:
* If reusing the luggage compartment door emblem, take care not to damage the symbol emblem.
* Be careful not to damage the vehicle body.

2. REMOVE NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE

(a) Put protective tape around the No. 2 luggage compartment door name plate.





Text in Illustration





(b) Insert a piano wire between the vehicle body and No. 2 luggage compartment door name plate.

(c) Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

(d) Pull the piano wire to separate the double-sided tape that holds the No. 2 luggage compartment door name plate to the vehicle body.

NOTICE:
* If reusing the No. 2 luggage compartment door name plate, take care not to damage the No. 2 luggage compartment door name plate.
* Be careful not to damage the vehicle body.

(e) Remove the No. 2 luggage compartment door name plate.

3. REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR NAME PLATE

(a) Put protective tape around the No. 3 luggage compartment door name plate.





Text in Illustration





(b) Insert a piano wire between the vehicle body and No. 3 luggage compartment door name plate.

(c) Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

(d) Pull the piano wire to separate the double-sided tape that holds the No. 3 luggage compartment door name plate to the vehicle body.

NOTICE:
* If reusing the No. 3 luggage compartment door name plate, take care not to damage the No. 3 luggage compartment door name plate.
* Be careful not to damage the vehicle body.

(e) Remove the No. 3 luggage compartment door name plate.
