Installation

EXTERIOR PANELS / TRIM: NAME PLATE: INSTALLATION

HINT
When installing the name plates or emblem, heat the vehicle body and name plates or emblem using a heat light.

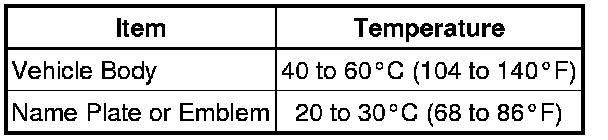

Heating Temperature





NOTICE:
Do not heat the vehicle body, name plates or emblem excessively.

1. INSTALL LUGGAGE COMPARTMENT DOOR EMBLEM

(a) Clean the vehicle body surface.

(1) Using a heat light, heat the vehicle body surface.

(2) Remove the double-sided tape from the vehicle body.

(3) Wipe off any tape adhesive residue with cleaner.

(b) Clean the luggage compartment door emblem. (If reusing the luggage compartment door emblem)

(1) Using a heat light, heat the luggage compartment door emblem.

(2) Remove the double-sided tape from the luggage compartment door emblem.

(3) Wipe off any tape adhesive residue with cleaner.

(4) Apply new double-sided tape to the luggage compartment door emblem.

(c) Install the luggage compartment door emblem.

(1) Using a heat light, heat the vehicle body and luggage compartment door emblem.

(2) Remove the release paper from the luggage compartment door emblem.

HINT
After removing the release paper, keep the exposed adhesive free from foreign matter.

(3) Engage the 2 pins and install the luggage compartment door emblem as shown in the illustration.





2. INSTALL NO. 2 LUGGAGE COMPARTMENT DOOR NAME PLATE

(a) Clean the vehicle body surface.

(1) Using a heat light, heat the vehicle body surface.

(2) Remove the double-sided tape from the vehicle body.

(3) Wipe off any tape adhesive residue with cleaner.

(b) Clean the No. 2 luggage compartment door name plate. (If reusing the No. 2 luggage compartment door name plate)

(1) Using a heat light, heat the No. 2 luggage compartment door name plate.

(2) Remove the double-sided tape from the No. 2 luggage compartment door name plate.

(3) Wipe off any tape adhesive residue with cleaner.

(4) Apply new double-sided tape to the No. 2 luggage compartment door name plate.

(c) Install the No. 2 luggage compartment door name plate.

(1) Using a heat light, heat the vehicle body and No. 2 luggage compartment door name plate.

(2) Remove the release paper from the No. 2 luggage compartment door name plate.

HINT
After removing the release paper, keep the exposed adhesive free from foreign matter.

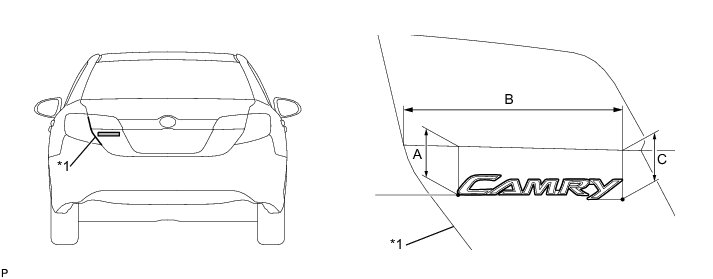

(3) Install the No. 2 luggage compartment door name plate.





Text in Illustration

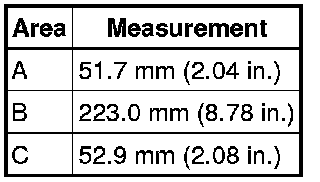

Reference Measurement:





3. INSTALL NO. 3 LUGGAGE COMPARTMENT DOOR NAME PLATE

(a) Clean the vehicle body surface.

(1) Using a heat light, heat the vehicle body surface.

(2) Remove the double-sided tape from the vehicle body.

(3) Wipe off any tape adhesive residue with cleaner.

(b) Clean the No. 3 luggage compartment door name plate. (If reusing the No. 3 luggage compartment door name plate)

(1) Using a heat light, heat the No. 3 luggage compartment door name plate.

(2) Remove the double-sided tape from the No. 3 luggage compartment door name plate.

(3) Wipe off any tape adhesive residue with cleaner.

(4) Apply new double-sided tape to the No. 3 luggage compartment door name plate.

(c) Install the No. 3 luggage compartment door name plate.

(1) Using a heat light, heat the vehicle body and No. 3 luggage compartment door name plate.

(2) Remove the release paper from the No. 3 luggage compartment door name plate.

HINT
After removing the release paper, keep the exposed adhesive free from foreign matter.

(3) Install the No. 3 luggage compartment door name plate.





Text in Illustration

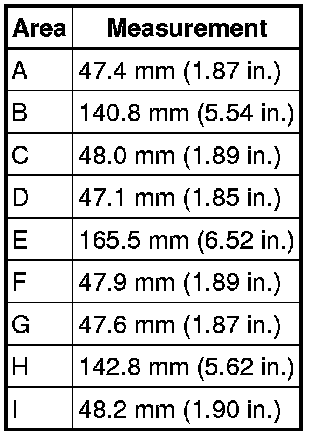

Reference Measurement:
