Blind Spot Monitor System
PARK ASSIST / MONITORING: BLIND SPOT MONITOR SYSTEM: PRECAUTION
1. PRECAUTION FOR DISCONNECTING CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
* When disconnecting the cable from the negative (-) battery terminal, initialize the following system after the terminal is reconnected.
2. IGNITION SWITCH EXPRESSIONS

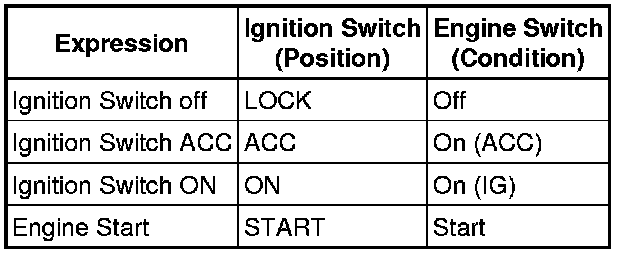

(a) The type of ignition switch used on this model differs according to the specifications of the vehicle. The expressions listed in the table below are used in this section.
3. PRECAUTIONS FOR BLIND SPOT MONITOR
(a) The blind spot monitor may not detect vehicles correctly in the following conditions:
(1) During bad weather such as heavy rain, fog, snow, etc.
(2) When there is a significant difference in speed between this vehicle and the vehicle that enters the detection area.
(3) When a vehicle is in the detection area from a stop and remains in the detection area as this vehicle accelerates.
(4) When driving up or down steep inclines, such as hills, a dip in the road, etc.
(5) When multiple vehicles approach with only a small gap between each vehicle.
(6) When vehicle lanes are wide, and the vehicle in the next lane is too far away from this vehicle.
(7) When the vehicle that enters the detection area is traveling at about the same speed as this vehicle.
(8) When there is a significant difference in height between this vehicle and the vehicle that enters the detection area.
(9) When driving on a road surface that is wet due to rain, standing water, etc.
(10) When ice, mud, etc. is attached to the rear bumper.
(11) Directly after the blind spot monitor main switch assembly (warning canceling switch assembly) is turned on.
HINT
In this section, the expression "this vehicle" is used to refer to the vehicle equipped with this blind spot monitor system.
(b) The blind spot monitor is not designed to detect the following types of vehicles or objects:
(1) Vehicles traveling from the opposite direction.
(2) Small motorcycles, bicycles, pedestrians, etc.*
(3) Following vehicles that are in the same lane.*
(4) Guardrails, walls, signs, parked vehicles and similar stationary objects.*
(5) Vehicles driving 2 lanes across from this vehicle
*: Depending on conditions, detection of a vehicle and/or object may occur.
(c) Instances of the blind spot monitor unnecessarily detecting a vehicle and/or object may increase under the following conditions:
(1) When there is only a short distance between this vehicle and a guardrail, wall, etc.
(2) When vehicle lanes are narrow and a vehicle driving 2 lanes across from this vehicle enters the detection area.
(3) When there is only a short distance between this vehicle and a following vehicle.
4. HANDLING THE RADAR SENSOR
(a) One blind spot monitor sensor is installed inside the left and right sides of the vehicle rear bumper respectively. Observe the following to ensure the blind spot monitor can function correctly.
(1) Keep the sensor and its surrounding area on the bumper clean at all times.
(2) Do not subject the surrounding area on the bumper to a strong impact. If the sensor moves even slightly off position, the system may malfunction and vehicles that enter the detection area may not be detected. If the surrounding area has been subjected to a strong impact, inspect the sensor and surrounding area.
(3) Do not disassemble the sensor.
(4) Do not attach accessories or stickers to the sensor or surrounding area on the bumper.
(5) Do not modify the sensor or surrounding area on the bumper.
(6) Do not paint the sensor or the surrounding area.
(7) Do not apply strong impacts to the sensor or drop it, as it is a high-precision device.
(8) Do not reuse a sensor that has been dropped or subjected to a strong impact.
