PARK ASSIST / MONITORING: BLIND SPOT MONITOR SENSOR: INSTALLATION

1. INSTALL BLIND SPOT MONITOR COVER

(a) Engage the claw.

(b) Install the blind spot monitor cover with the 2 nuts.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

2. INSTALL BLIND SPOT MONITOR SENSOR

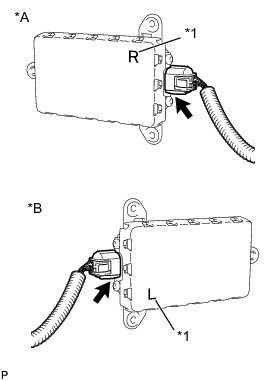

(a) Connect the connector.





Text in Illustration





NOTICE:
* Replace the blind spot monitor sensor if it has been dropped or subjected to a severe impact.
* Confirm the identification marks on the blind spot monitor sensor before installing it.
* If the blind spot monitor sensors are not installed to the correct side, the blind spot monitor system will not operate.

(b) Install the blind spot monitor sensor with the 3 nuts.

Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(c) for LH Side:

(1) Engage the 2 clamps.

(d) for RH Side:

(1) Engage the clamp.

3. INSTALL REAR BUMPER ASSEMBLY

Installation

4. PERFORM BLIND SPOT MONITOR BEAM AXIS INSPECTION

(a) Refer to operation check Operation Check.

SST : 09870-60000

09870-60010

SST : 09870-60040

5. PERFORM DIAGNOSTIC SYSTEM CHECK

Blind Spot Monitor System
