Home >> Toyota >> 2012 >> Avalon V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Axle Shaft Assembly >> Service and Repair >> Removal and Replacement >> Components

Components

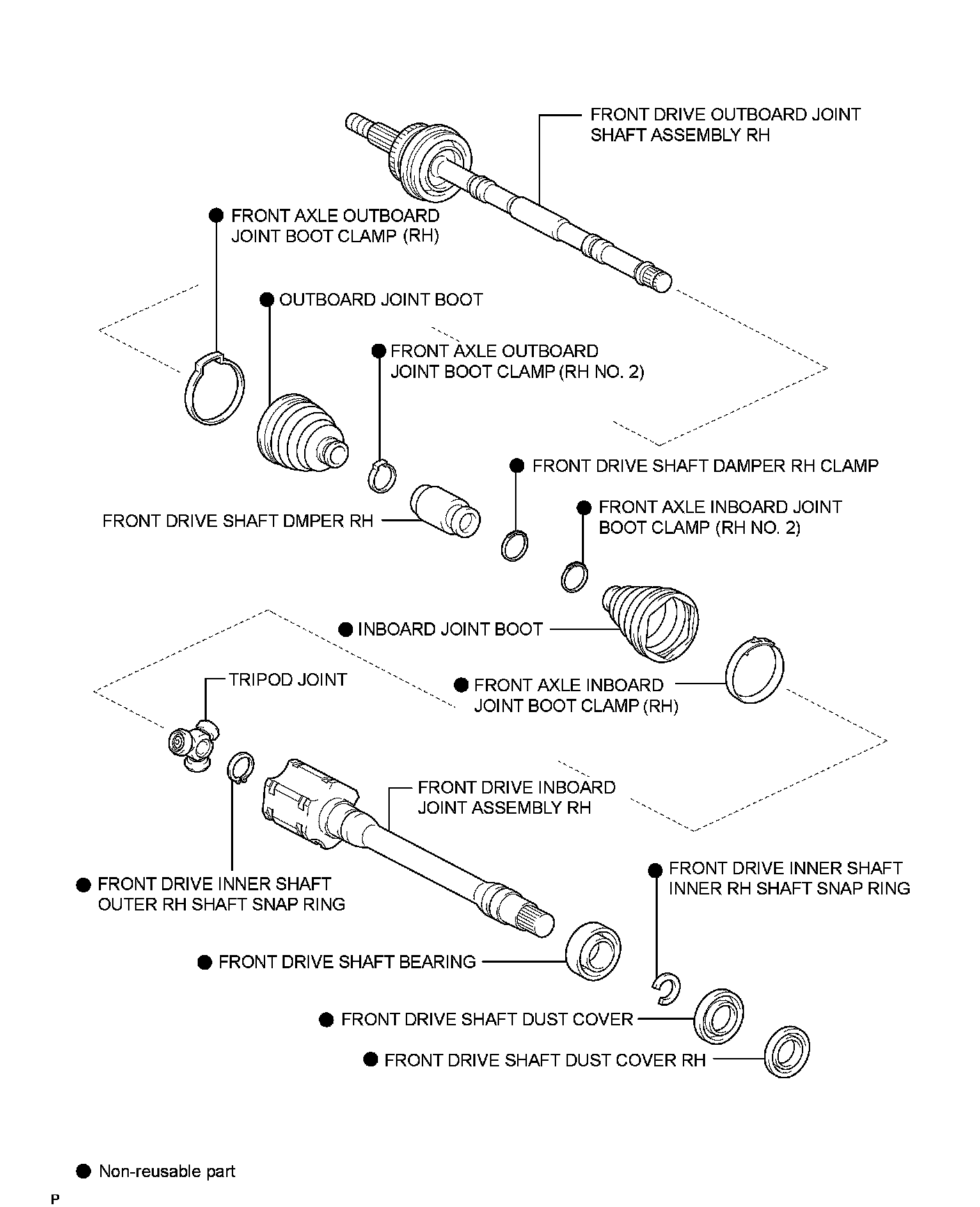

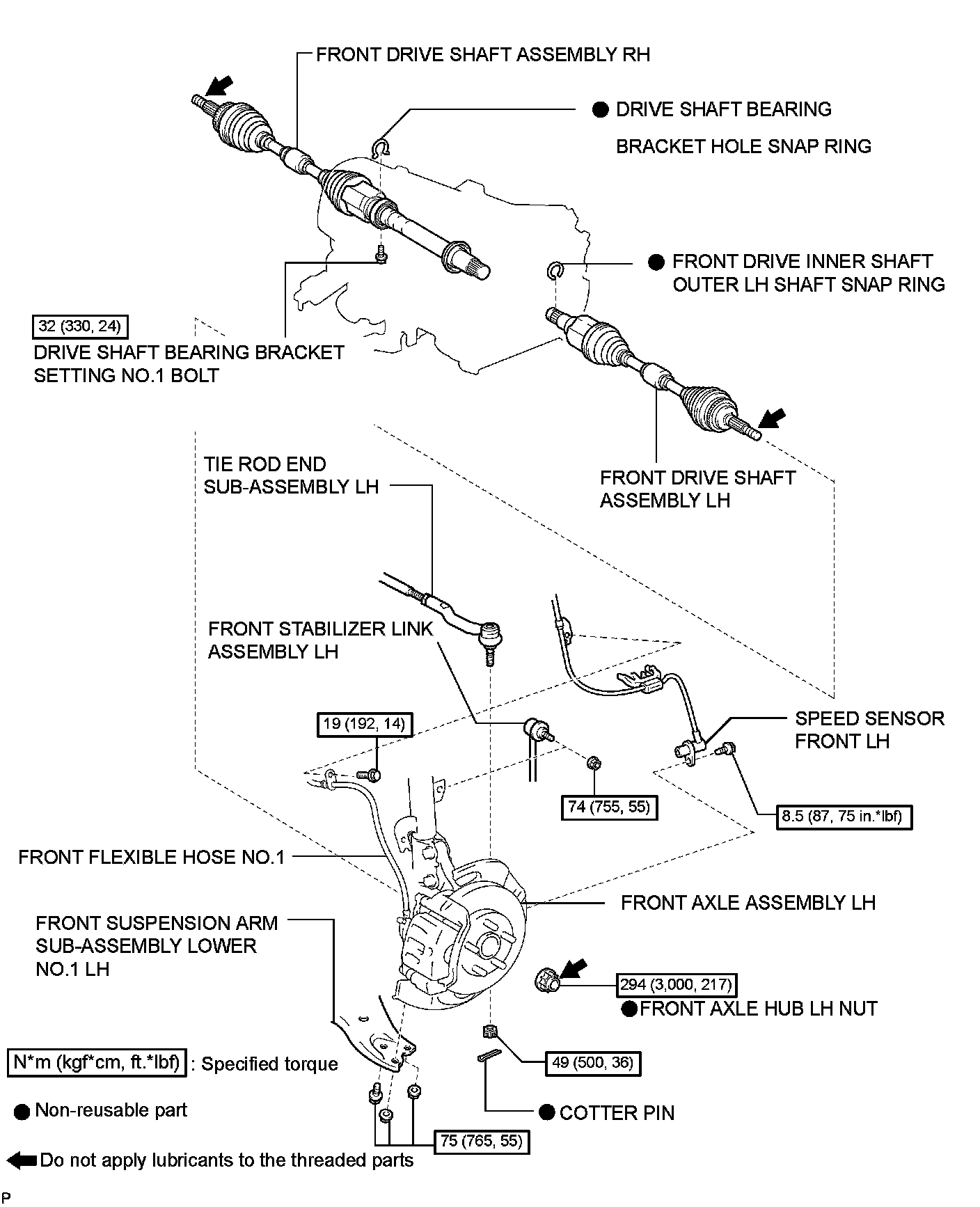

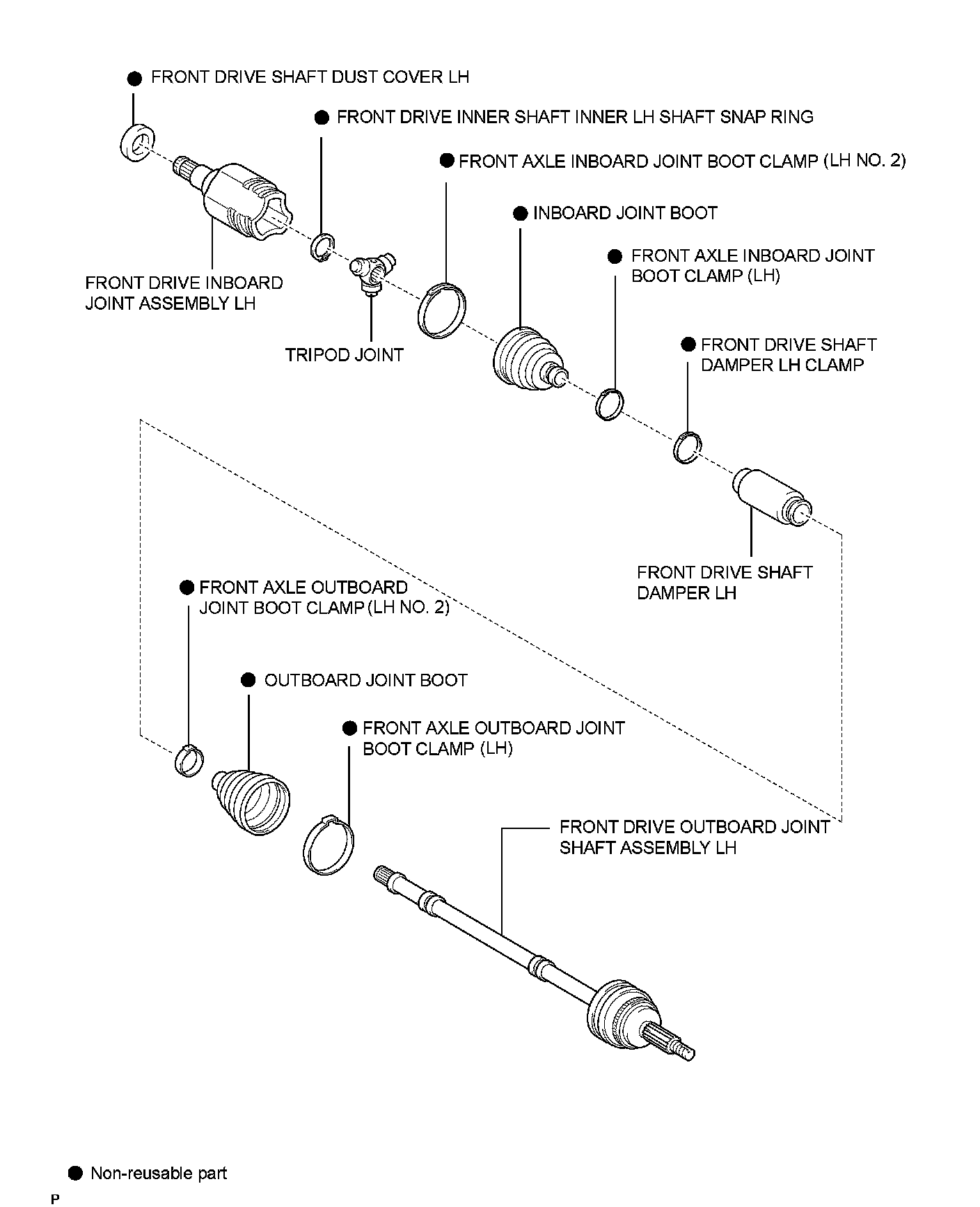

DRIVE SHAFT: FRONT DRIVE SHAFT ASSEMBLY: COMPONENTS
