Home >> Toyota >> 2012 >> Avalon V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Seat Belt >> Service and Repair >> Removal and Replacement >> Rear Center Seat Inner Belt Assembly >> Components

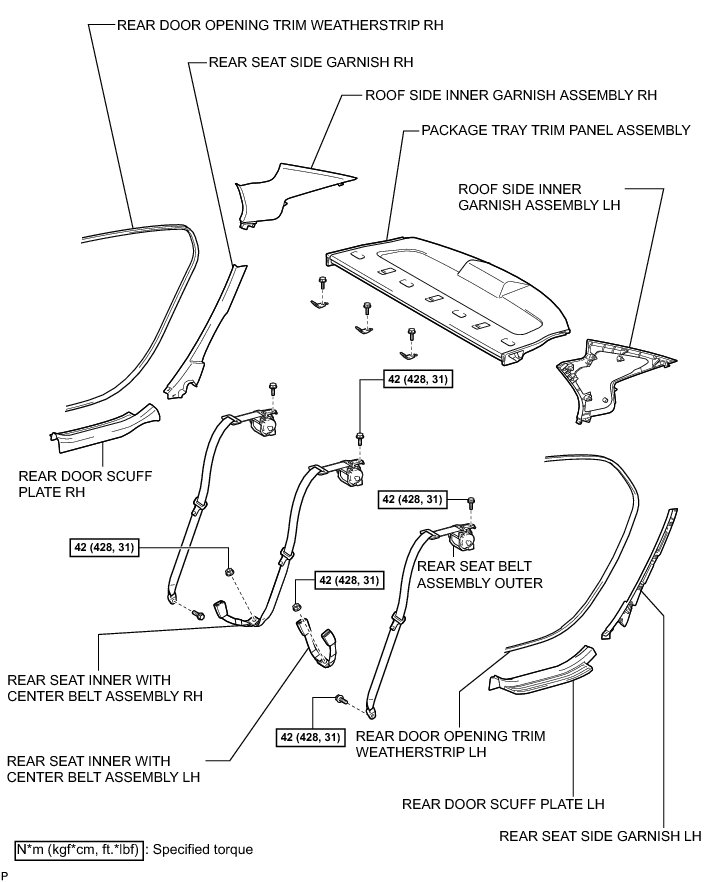

Components





SEAT BELT: REAR CENTER SEAT INNER BELT ASSEMBLY: COMPONENTS
