Headlamp Relay: Testing and Inspection

LIGHTING: HEADLIGHT RELAY: INSPECTION

1. INSPECT HEADLIGHT RELAY

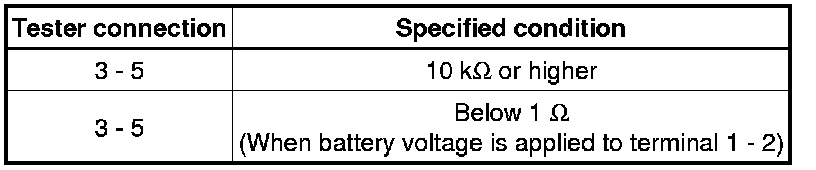

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:
