Home
>>
Toyota
>>
2012
>>
Avalon V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Injector
>>
Service and Repair
>>
Components

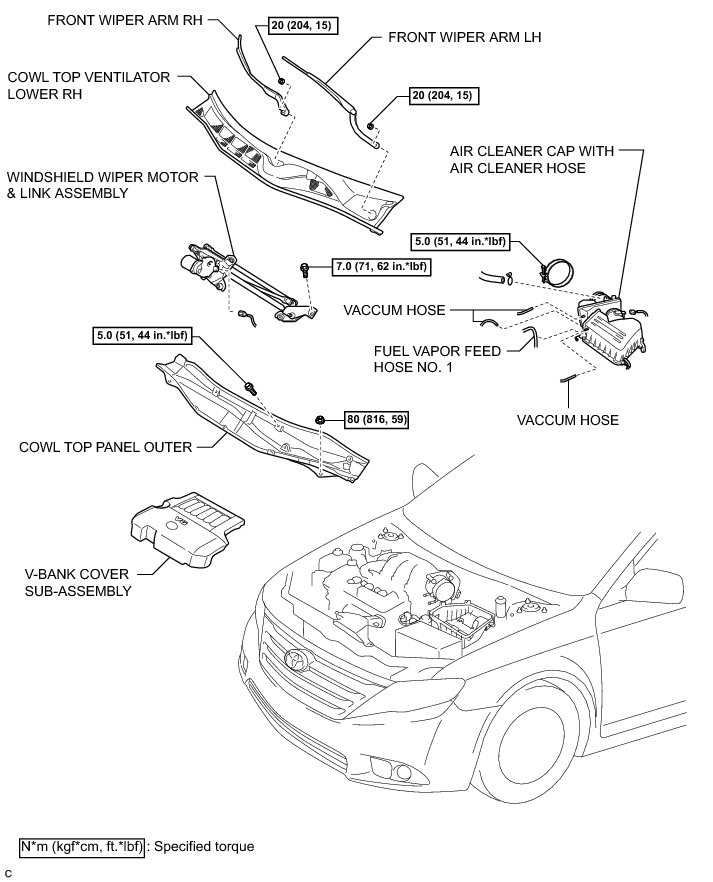

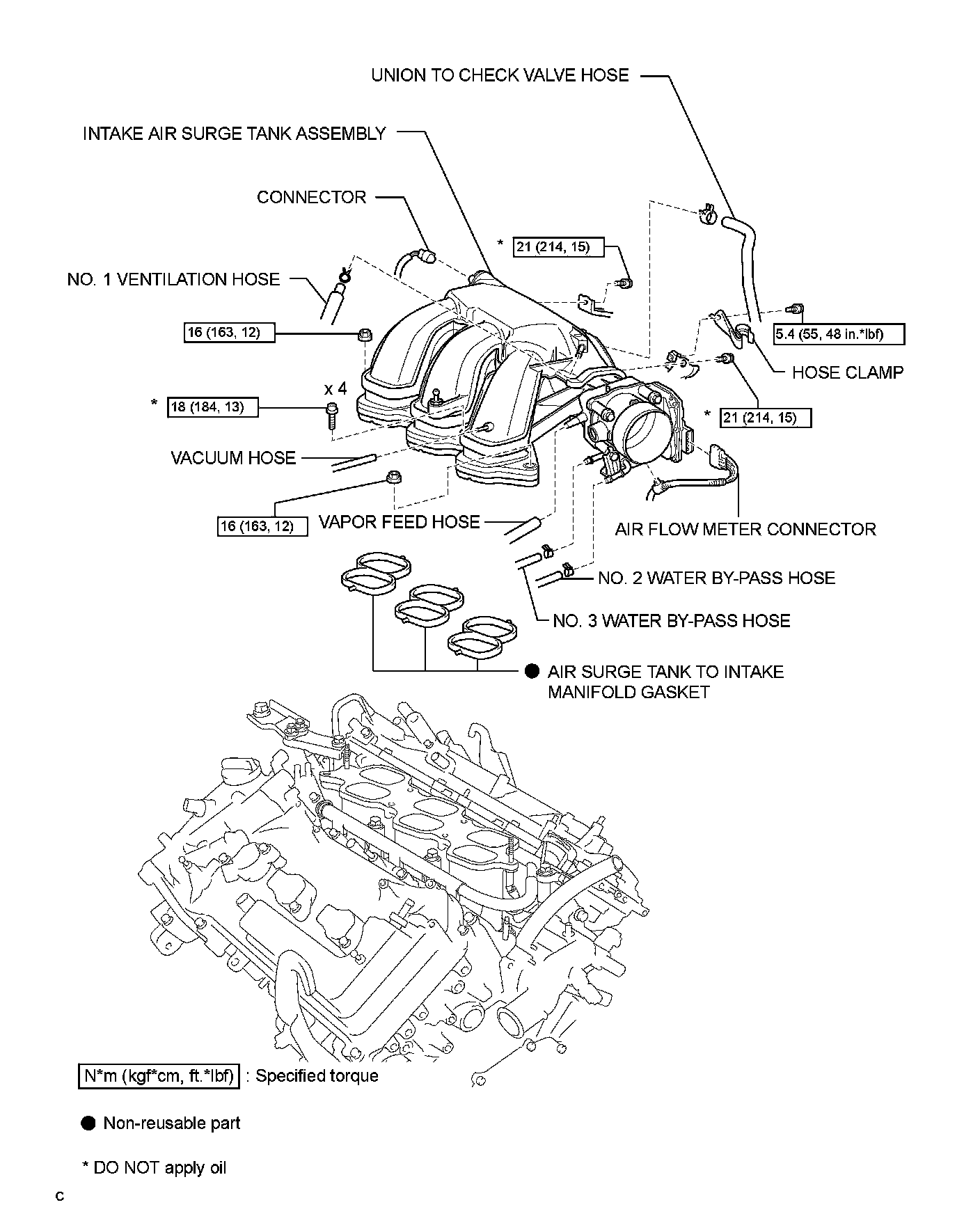

Components
2GR-FE FUEL:

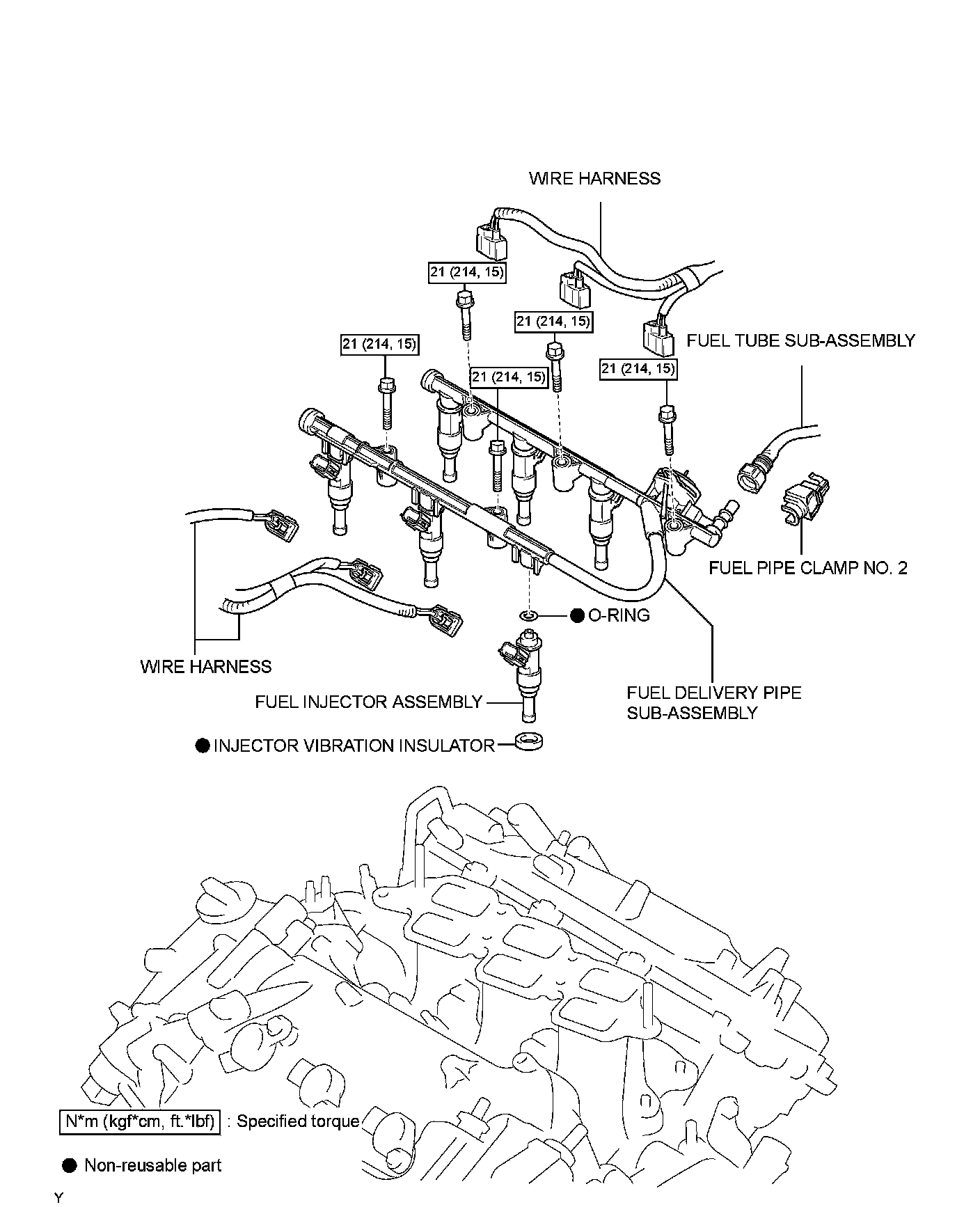

FUEL INJECTOR
: COMPONENTS
