Avalon V6-3.5L (2GR-FE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Service and Repair
>>
Removal and Replacement
>>
Components
Components

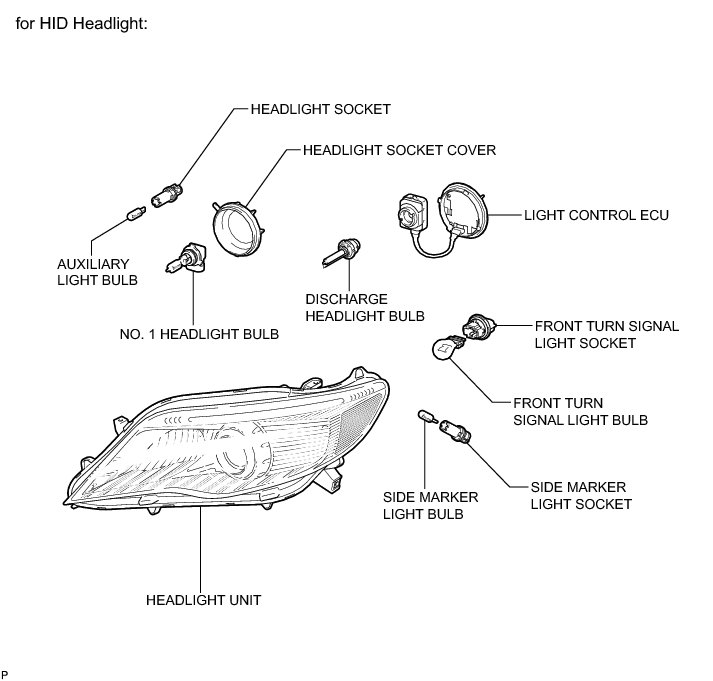

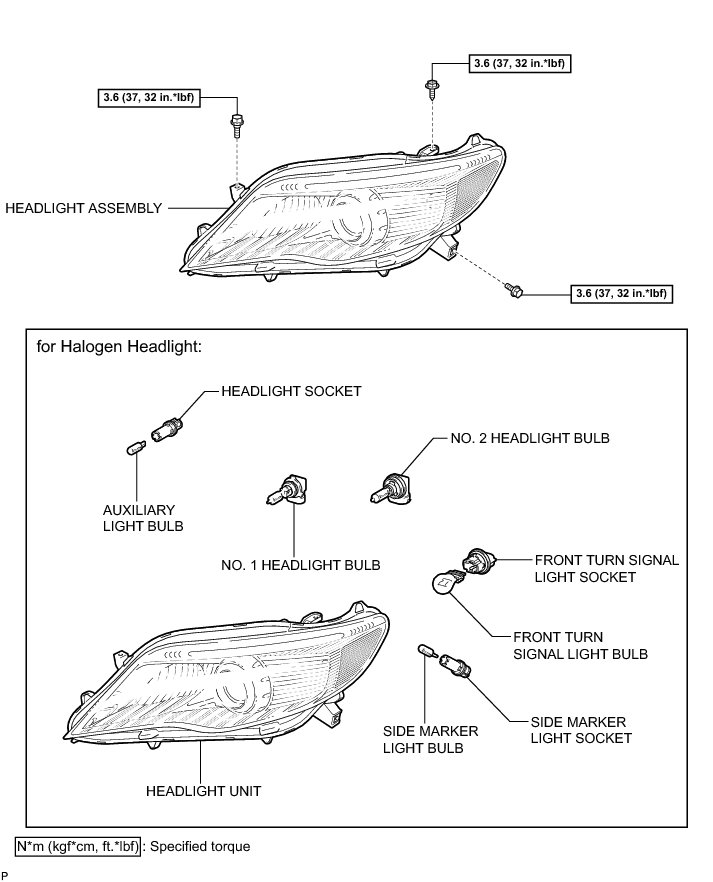

LIGHTING: HEADLIGHT ASSEMBLY: COMPONENTS
