Home >> Toyota >> 2012 >> Avalon V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Problem Symptoms Table

Problem Symptoms Table





METER: METER / GAUGE SYSTEM: PROBLEM SYMPTOMS TABLE

Entire System

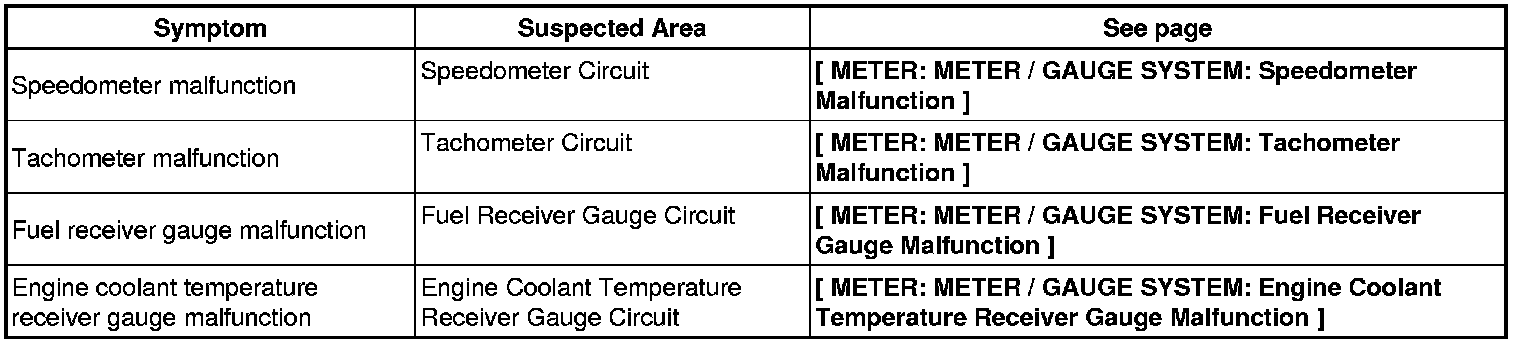

Meter or Gauge

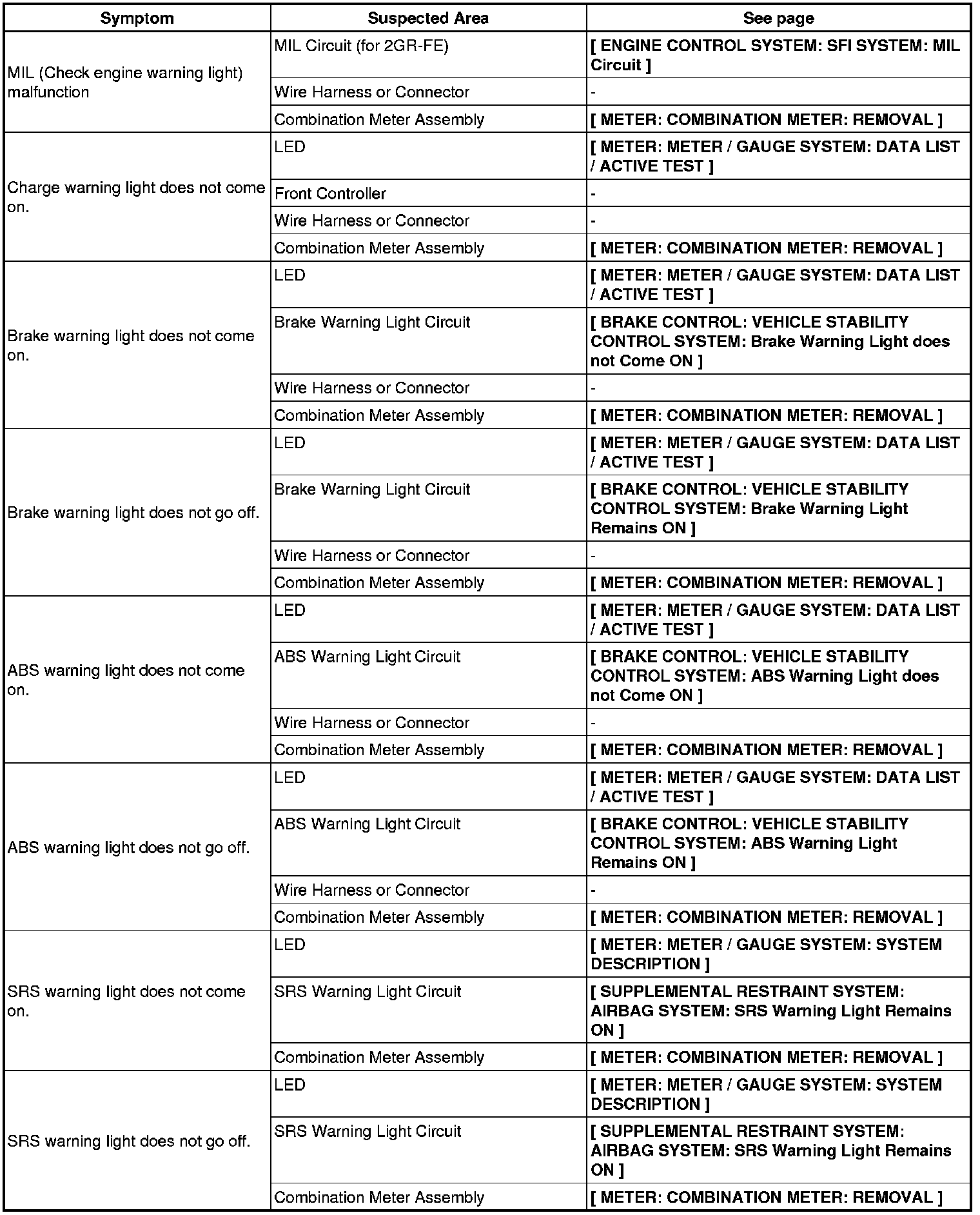

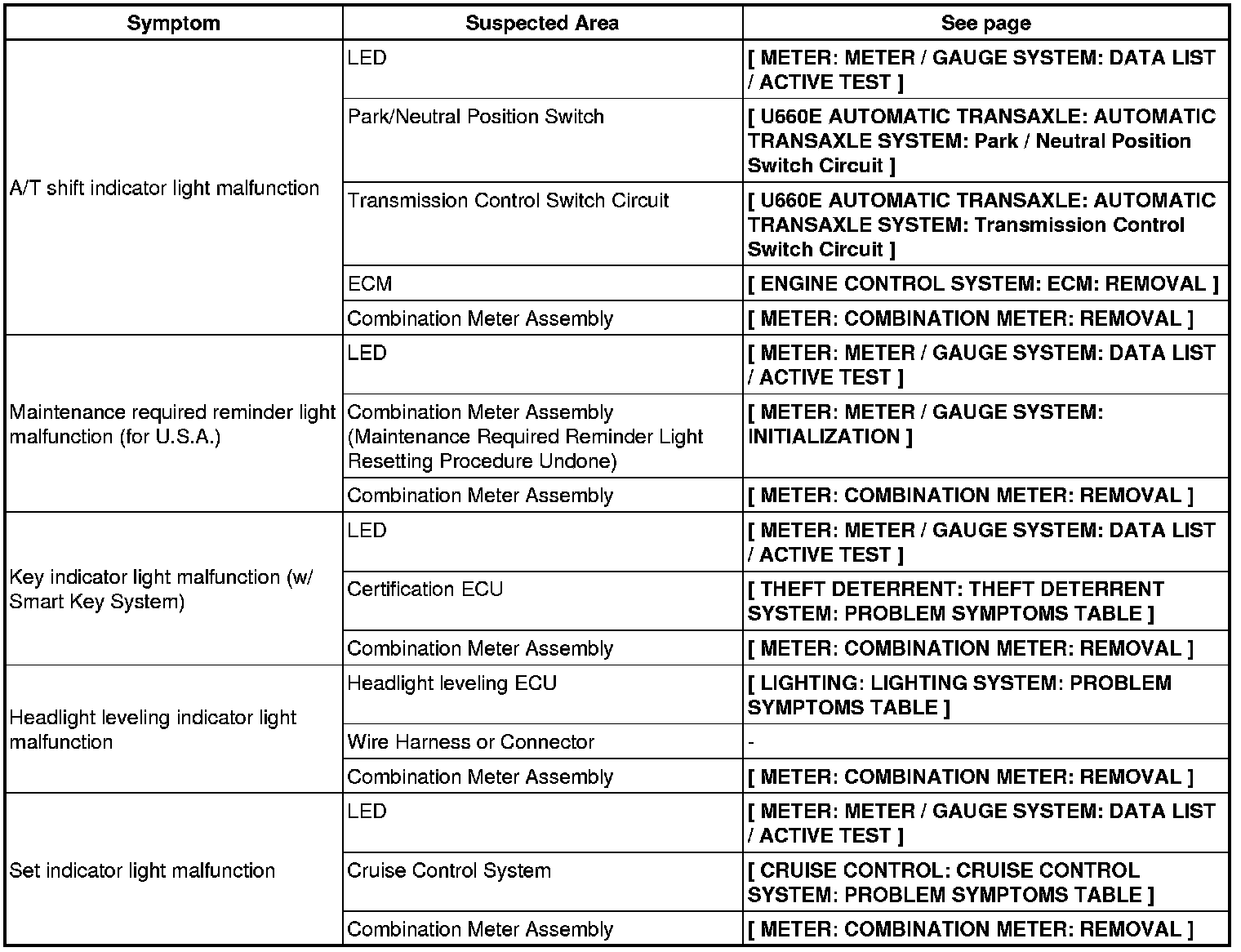

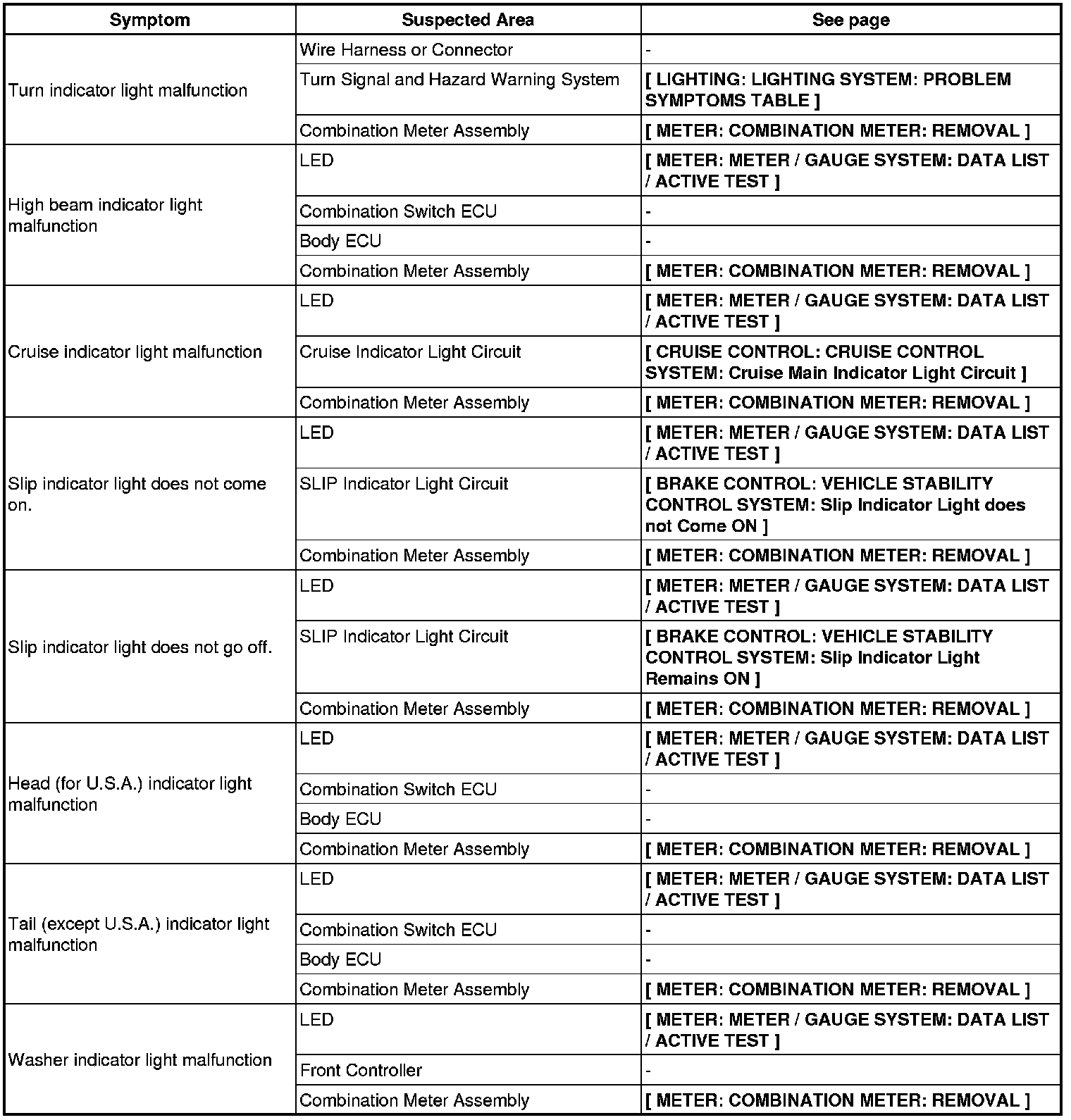

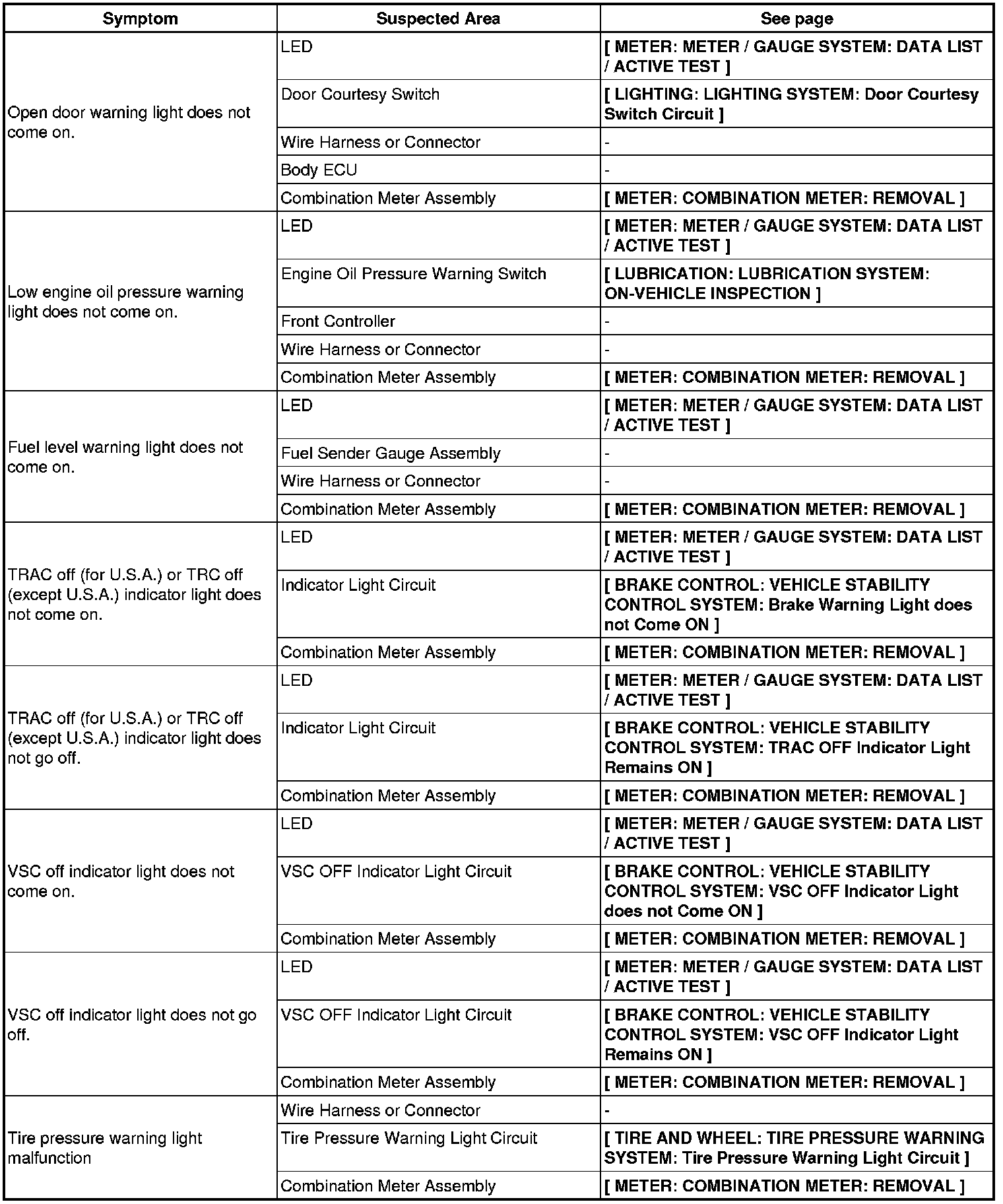

Warning Light, Indicator Light

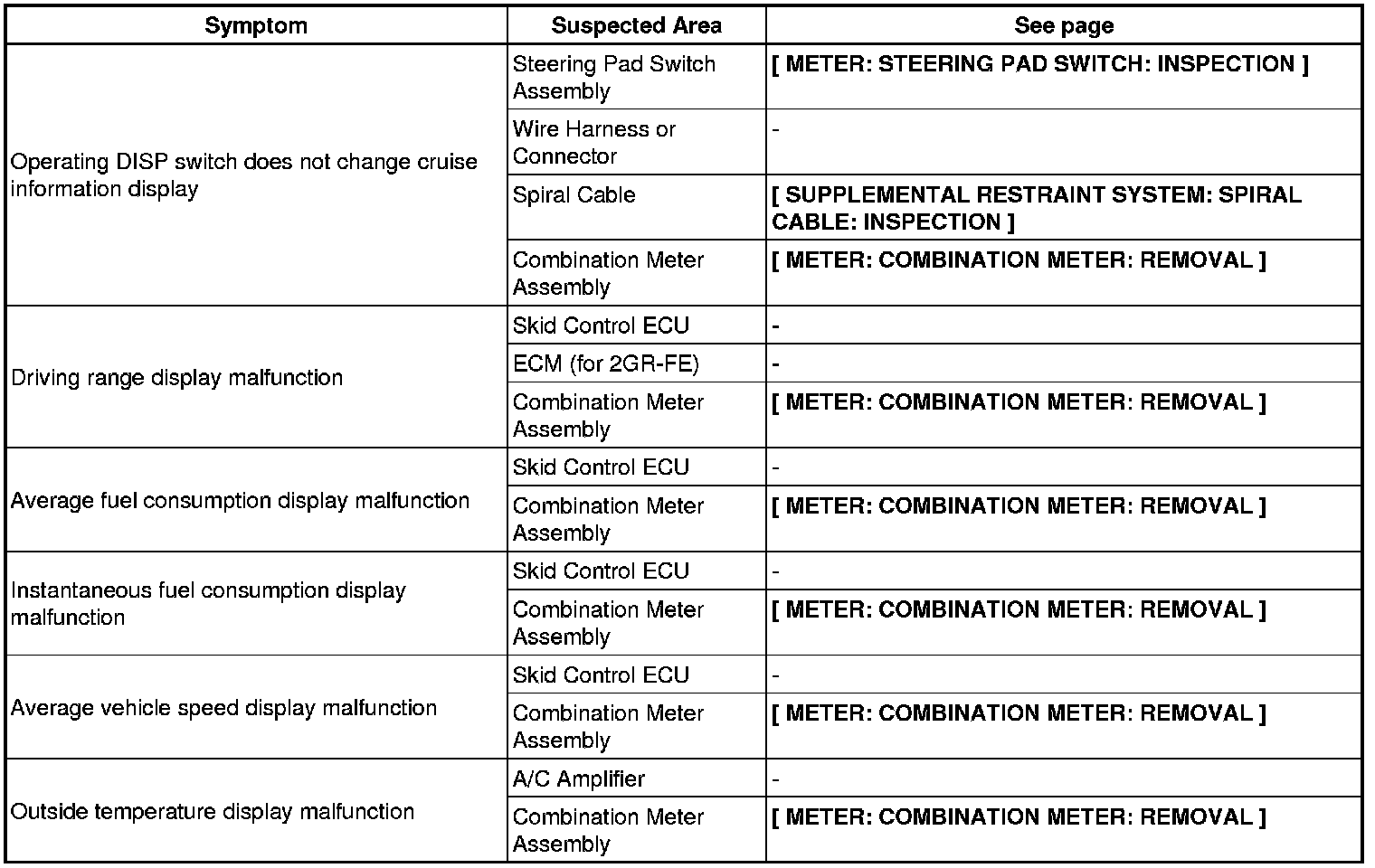

Cruise Information Display

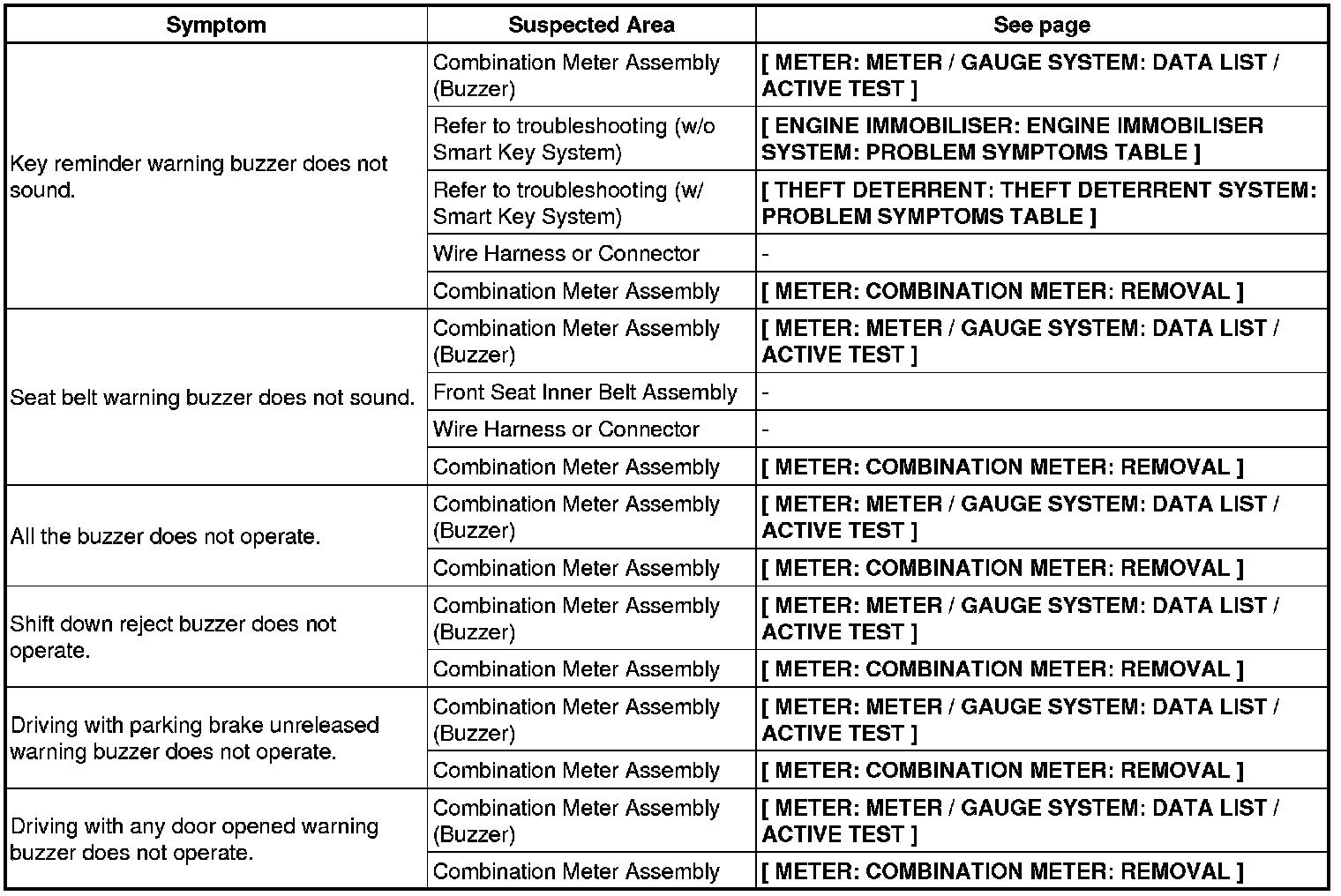

Buzzer
