Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

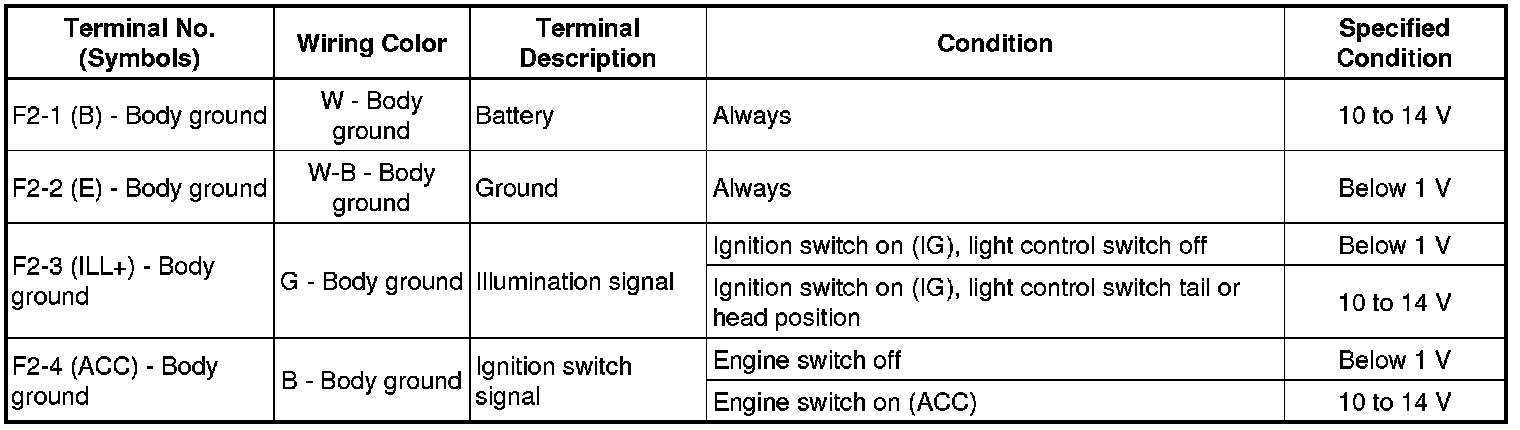

OTHER SYSTEM: CLOCK SYSTEM: TERMINALS OF ECU
1.

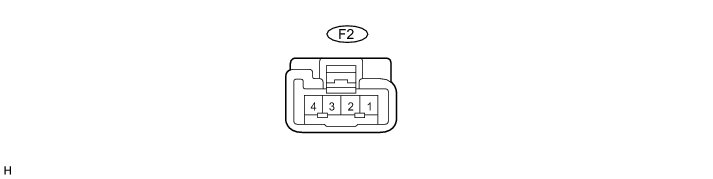

CLOCK ASSEMBLY
