Removal

WIPER AND WASHER: WIPER SWITCH (for Sedan): REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE STEERING COLUMN COVER Removal

3. REMOVE WIPER SWITCH

(a) Disconnect the 2 connectors.

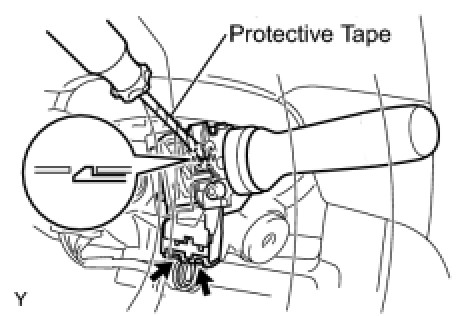

(b) Using a screwdriver with its tip wrapped in protective tape, disengage the claw and remove the wiper switch.

NOTICE:
Do not press the claw too hard, as it may be damaged.
