Installation

WIPER AND WASHER: WIPER SWITCH (for Sedan): INSTALLATION

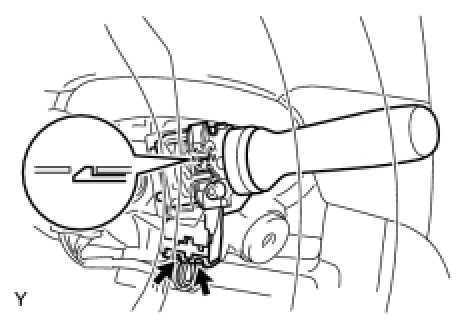

1. INSTALL WIPER SWITCH

(a) Engage the claw and install the windshield wiper switch.





(b) Connect the 2 connectors.

2. INSTALL STEERING COLUMN COVER Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
