Installation

WINDSHIELD / WINDOWGLASS: POWER WINDOW MASTER SWITCH (for Hatchback): INSTALLATION

1. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

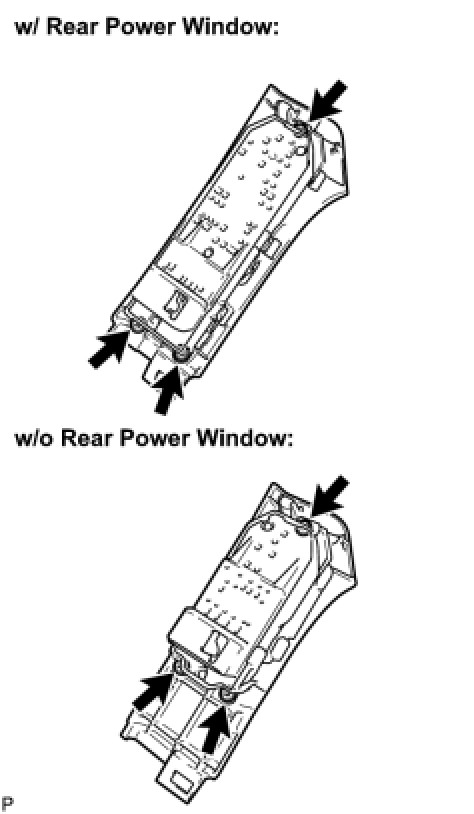

(a) Install the power window regulator master switch with the 3 screws.

2. INSTALL FRONT ARMREST BASE PANEL UPPER Reassembly

3. INSTALL DOOR ARMREST COVER Reassembly

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
