Removal

WINDSHIELD / WINDOWGLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH (for Sedan): REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE FRONT ARMREST BASE UPPER PANEL Disassembly

3. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY

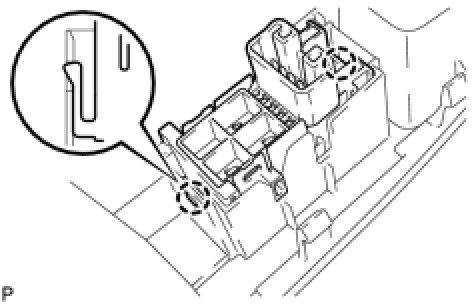

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the power window regulator switch.
