Removal

WINDSHIELD / WINDOWGLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH (for Hatchback): REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE DOOR ARMREST COVER

HINT
Use the same procedure as for the LH side Reassembly.

3. REMOVE FRONT ARMREST BASE PANEL UPPER





(a) Using a screwdriver with its tip wrapped in protective tape, disengage the 5 claws and clip and remove the front armrest base panel upper.

(b) Disconnect the connector.

4. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY

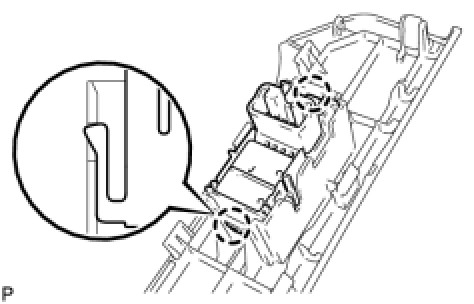

(a) Disengage the 2 claws and remove the power window regulator switch.
