Heated Glass Element: Description and Operation
WINDSHIELD

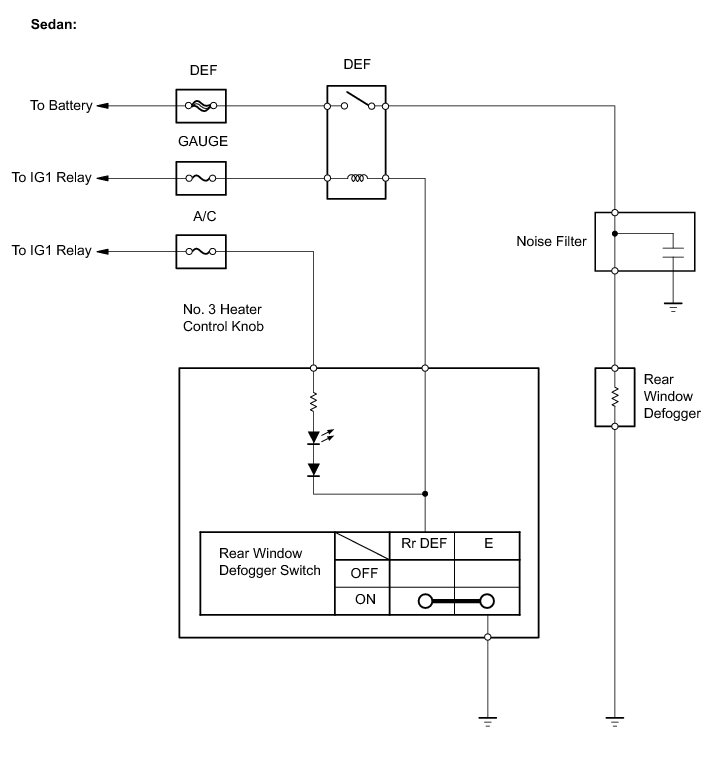

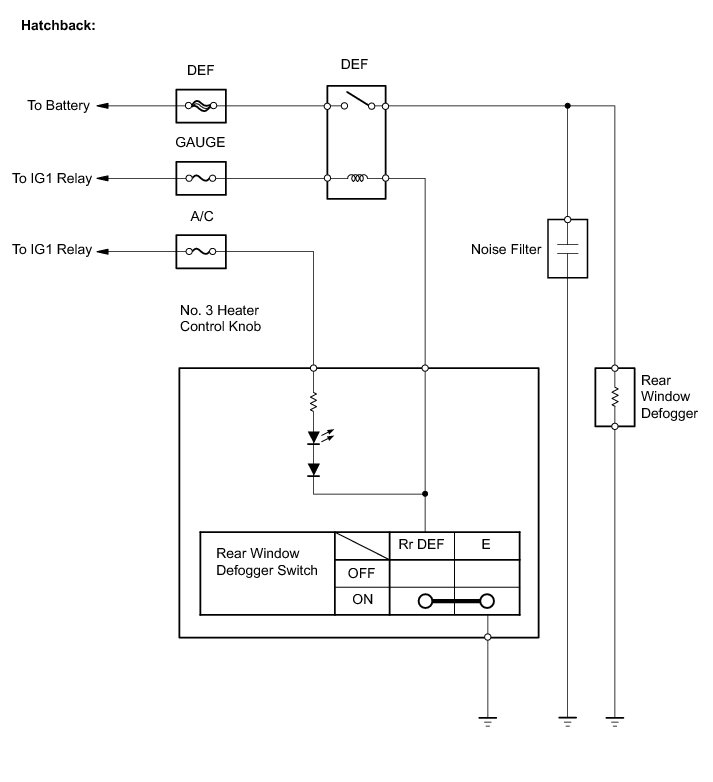

/ WINDOWGLASS: WINDOW DEFOGGER SYSTEM: SYSTEM DIAGRAM
