Speed Sensor

U340E AUTOMATIC TRANSAXLE: SPEED SENSOR: INSPECTION

1. INSPECT SPEEDOMETER SENSOR

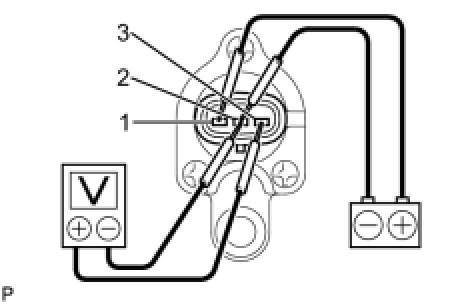

(a) Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2.

(b) Connect the positive (+) lead from the tester to terminal 3 and the negative (-) lead to terminal 2.

(c) Rotate the shaft.

(d) Check that the voltage output varies between 0 V and 11 V between terminals 2 and 3.

HINT
The voltage output oscillates more than 4 times every revolution of the speed sensor shaft.

If the operation is not as specified, replace the sensor.
