U340E AUTOMATIC TRANSAXLE: SPEED SENSOR: REMOVAL

1. REMOVE FRONT WIPER ARM HEAD CAP

Hatchback: Removal

Sedan: Removal

2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH

Hatchback: Removal

Sedan: Removal

3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH

Hatchback: Removal

Sedan: Removal

4. REMOVE HOOD TO COWL TOP SEAL (for Hatchback) Removal

5. REMOVE COWL SIDE VENTILATOR SUB-ASSEMBLY LH (for Sedan) Removal

6. REMOVE COWL SIDE VENTILATOR SUB-ASSEMBLY RH (for Sedan) Removal

7. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

Hatchback: Removal

Sedan: Removal

8. REMOVE COWL TOP VENTILATOR LOUVER LH (for Hatchback) Removal

9. REMOVE FRONT WIPER MOTOR AND LINK

Hatchback: Removal

Sedan: Removal

10. REMOVE COWL TO REGISTER DUCT SUB-ASSEMBLY (for Hatchback) Removal

11. REMOVE FRONT AIR SHUTTER SEAL (for Sedan) Removal

12. REMOVE OUTER COWL TOP PANEL

Hatchback: Removal

Sedan: Removal

13. REMOVE BATTERY Removal

14. REMOVE BATTERY TRAY

15. REMOVE BATTERY CARRIER Removal

16. REMOVE SPEEDOMETER SENSOR





(a) Disconnect speedometer sensor connector.

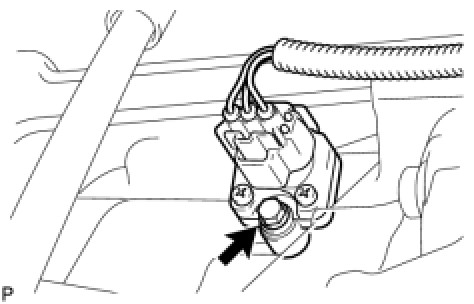

(b) Remove the bolt and speedometer sensor.

17. REMOVE SPEEDOMETER DRIVEN GEAR





(a) Remove the clip and driven gear from the speedometer sensor.

(b) Remove the O-ring from the speedometer sensor.
