Disassembly

U340E AUTOMATIC TRANSAXLE: DIFFERENTIAL CASE: DISASSEMBLY

1. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING

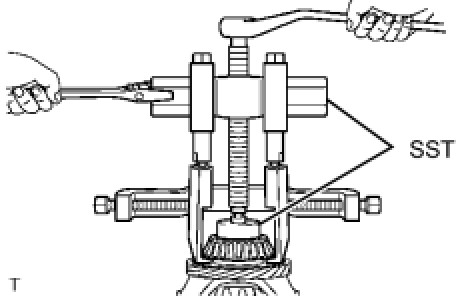

(a) Using SST, remove the front differential case front tapered roller bearing from the differential case.

SST : 09950-40011

09951-04010

09952-04010

09953-04030

09954-04010

09955-04061

09957-04010

09958-04011

SST : 09950-60010

09951-00390

(b) Using SST, remove the front differential case RH tapered roller bearing outer race from the transaxle housing.

SST : 09387-00041

09387-02020

09387-02010





2. REMOVE SPEEDOMETER DRIVE GEAR

(a) Remove the speedometer drive gear from the differential case.





3. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING





(a) Using SST, remove the front differential case tapered roller bearing from the differential case.

SST : 09950-40011

09951-04010

09952-04010

09953-04020

09954-04010

09955-04061

09957-04010

09958-04011

SST : 09950-60010

09951-00430

(b) Using SST, remove the front differential case tapered roller bearing outer race from the transaxle case.

SST : 09612-65014

09612-01010





4. REMOVE FRONT DIFFERENTIAL RING GEAR





(a) Place matchmarks on the front differential ring gear and differential case.

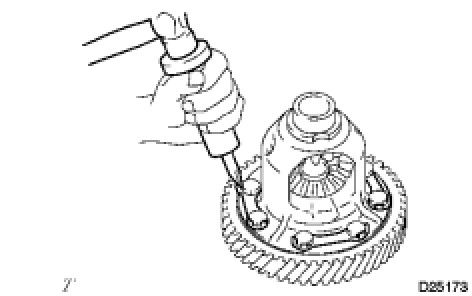

(b) Using SST and a hammer, release the lock plate.





SST : 09930-00010

(c) Remove the 8 bolts and the lock plate.





(d) Using a plastic hammer, remove the front differential ring gear from the differential case.





5. REMOVE FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN





(a) Using a punch and a hammer, release the differential case.

(b) Using a pin punch and a hammer, remove the straight pin.





6. REMOVE FRONT NO. 1 DIFFERENTIAL PINION SHAFT





(a) Remove the pinion shaft from the front differential case.

7. REMOVE FRONT DIFFERENTIAL SIDE GEAR





(a) Remove the 2 pinions, 2 thrust washers, 2 side gears and 2 thrust washers No. 1 from the front differential case.
