Installation
U340E AUTOMATIC TRANSAXLE: DIFFERENTIAL OIL SEAL: INSTALLATION
1. INSTALL FRONT TRANSAXLE CASE OIL SEAL
(a) Coat the lip of a new oil seal with MP grease.

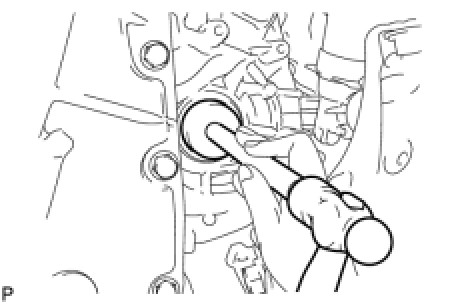

(b) Using SST and a hammer, install the front transaxle case oil seal.
SST : 09554-14010
SST : 09950-70010
09951-07200
Drive in depth:
1.5 to 2.5 mm (0.059 to 0.098 in.)
NOTICE:
Do not damage the oil seal lip.
2. INSTALL TRANSAXLE CASE OIL SEAL
(a) Coat the lip of a new oil seal with MP grease.

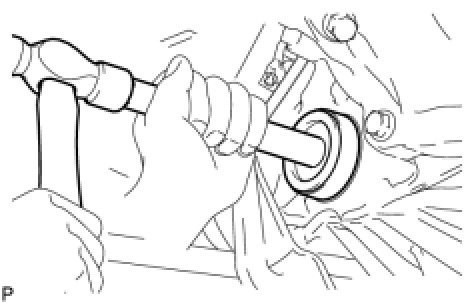

(b) Using SST and a hammer, install the transaxle case oil seal.
SST : 09710-20011
09710-06071
SST : 09950-70010
09951-07200
Drive in depth:
5.4 to 6.4 mm (0.213 to 0.252 in.)
NOTICE:
Do not damage the oil seal lip.
3. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH Installation
4. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH Installation
5. INSTALL AUTOMATIC TRANSMISSION CASE PROTECTOR (w/o ABS)
(a) Install the transmission case protector onto the automatic transaxle with the 2 bolts.
6. INSTALL FRONT AXLE ASSEMBLY LH Installation
7. INSTALL FRONT AXLE ASSEMBLY RH
HINT
The installation procedure for the RH side is the same as that for the LH side.
8. INSTALL FRONT LOWER SUSPENSION ARM LH Installation
9. INSTALL FRONT LOWER SUSPENSION ARM RH
HINT
The installation procedure for the RH side is the same as that for the LH side.
10. INSTALL TIE ROD END SUB-ASSEMBLY LH Installation
11. INSTALL TIE ROD END SUB-ASSEMBLY RH
HINT
The installation procedure for the RH side is the same as that for the LH side.
12. INSTALL FRONT STABILIZER LINK ASSEMBLY LH Installation
13. INSTALL FRONT STABILIZER LINK ASSEMBLY RH
HINT
The installation procedure for the RH side is the same as that for the LH side.
14. INSTALL FRONT SPEED SENSOR LH (w/ ABS) Installation
15. INSTALL FRONT SPEED SENSOR RH (w/ ABS)
HINT
The installation procedure for the RH side is the same as that for the LH side.
16. INSTALL FRONT AXLE HUB NUT LH Installation
17. INSTALL FRONT AXLE HUB NUT RH
HINT
The installation procedure for the RH side is the same as that for the LH side.
18. INSTALL FRONT WHEELS
Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)
19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
20. ADD AUTOMATIC TRANSAXLE FLUID Installation
21. INSPECT AUTOMATIC TRANSAXLE FLUID Procedures
22. CHECK AUTOMATIC TRANSAXLE FLUID LEAKAGE
23. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
Service and Repair
24. INSTALL ENGINE UNDER COVER RH
25. INSTALL ENGINE UNDER COVER LH
