Installation

POWER STEERING: POWER STEERING ECU (for Hatchback): INSTALLATION

1. INSTALL POWER STEERING ECU

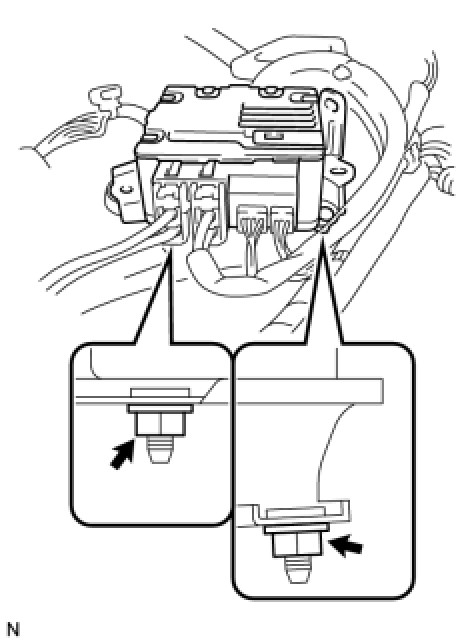

(a) Install the power steering ECU with the 2 nuts.





Torque : 5.0 Nm (51 kgf-cm, 44 in-lbf)

(b) Connect the 4 connectors.

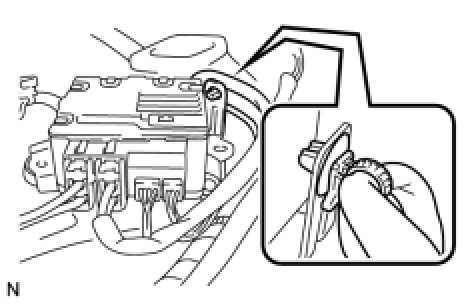

(c) Install the wire harness clamp.





NOTICE:
Make sure that the wire harness of the steering column assembly is installed onto the power steering ECU bracket and that it is not pulled too tightly.

2. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY Installation

3. INSTALL NO. 1 SWITCH HOLE BASE Installation

4. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

5. INSTALL FRONT PILLAR GARNISH RH Installation

6. INSTALL FRONT PILLAR GARNISH LH Installation

7. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH Installation

8. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

HINT
Use the same procedure for the RH side as for the LH side.

9. INSTALL COMBINATION METER ASSEMBLY Installation

10. INSTALL INSTRUMENT CLUSTER FINISH PANEL NO.1 Installation

11. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation

12. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation

13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

14. PERFORM CALIBRATION OF TORQUE SENSOR ZERO POINT

Programming and Relearning.
