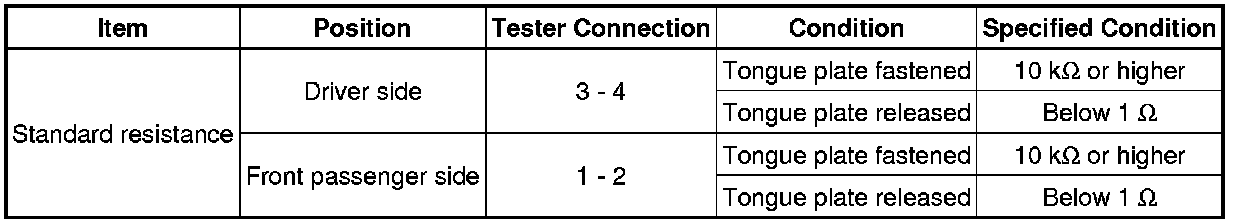

SERVICE SPECIFICATIONS:
SEAT BELT
: SERVICE DATA
FRONT SEAT INNER BELT ASSEMBLY (for Sedan)::
FRONT SEAT INNER BELT ASSEMBLY (for Hatchback)::
