How To Proceed With Troubleshooting

SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use the following procedures to troubleshoot the airbag system.
* *: Use a Techstream.
1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. CUSTOMER PROBLEM ANALYSIS How To Proceed With Troubleshooting

(a) Confirm problem symptoms.

NEXT -- Continue to next step.

3. CHECK CAN COMMUNICATION SYSTEM* Diagnosis System





B -- CHECK CAN COMMUNICATION CIRCUIT
A -- Continue to next step.

4. WARNING LIGHT CHECK Diagnosis System

NEXT -- Continue to next step.

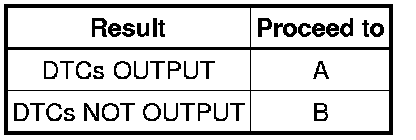

5. DTC CHECK* (Present and Past DTCs) DTC Check / Clear





B -- PROBLEM SYMPTOMS TABLE
A -- Continue to next step.

6. DTC CHART Airbag System

NEXT -- Continue to next step.

7. CIRCUIT INSPECTION*

NEXT -- Continue to next step.

8. REPAIR OR REPLACEMENT

NEXT -- Continue to next step.

9. DTC CLEARANCE* (Present and Past DTCs) DTC Check / Clear

NEXT -- Continue to next step.

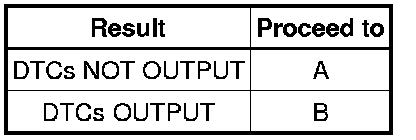

10. DTC CHECK* (Present and Past DTCs) DTC Check / Clear





B -- Go to step 6

A -- END
