Fog Light Relay (for Hatchback)

LIGHTING: FOG LIGHT RELAY (for Hatchback): INSPECTION

1. INSPECT FOG LIGHT RELAY





(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance between the terminals.

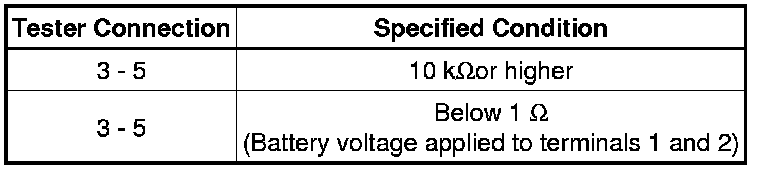

Standard Resistance:





(1) If the result is not as specified, replace the fog light relay.
