Installation

LIGHTING: FOG LIGHT RELAY (for Hatchback): INSTALLATION

1. INSTALL FOG LIGHT RELAY

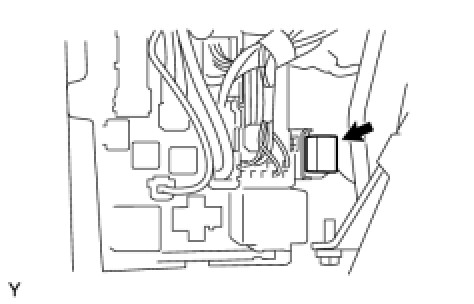

(a) Install the fog light relay.

2. INSTALL INSTRUMENT PANEL BOX Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
