Blower Motor Relay: Testing and Inspection

AIR CONDITIONING: HEATER BLOWER MOTOR RELAY: INSPECTION

1. INSPECT HEATER BLOWER MOTOR RELAY





(a) Check the resistance.

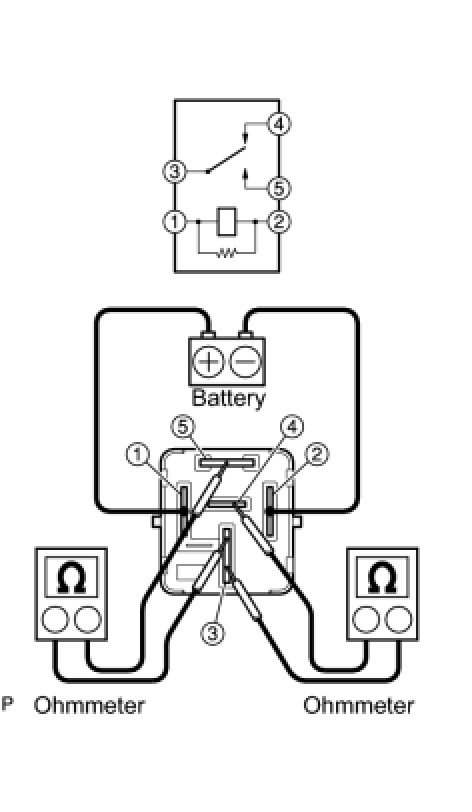

(1) Using an ohmmeter, measure the resistance between each terminal.

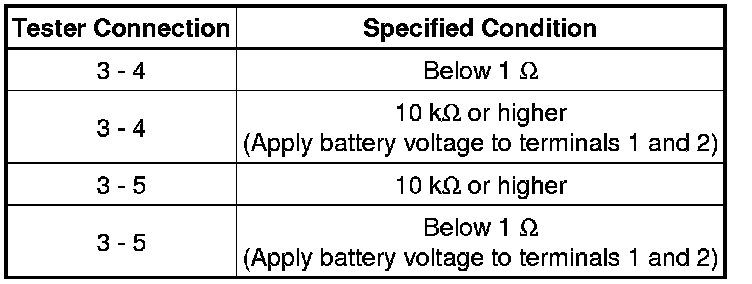

Standard resistance:





(1) If the result is not as specified, replace the relay.
