Auxiliary Heater Element Relay: Testing and Inspection

AIR CONDITIONING: PTC HEATER RELAY: ON-VEHICLE INSPECTION

1. INSPECT PTC HEATER RELAY





(a) Check the resistance.

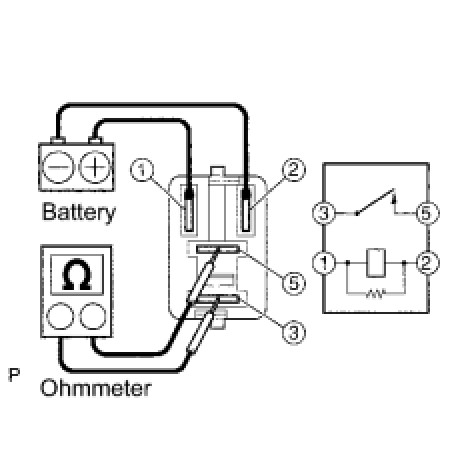

(1) Using an ohmmeter, measure the resistance between the terminals.

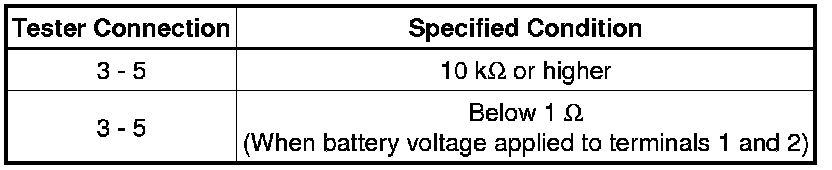

Standard resistance:





(1) If the result is not as specified, replace the PTC heater relay.
