Radiator Cooling Fan Motor Relay: Testing and Inspection

1NZ-FE COOLING: COOLING FAN RELAY: ON-VEHICLE INSPECTION

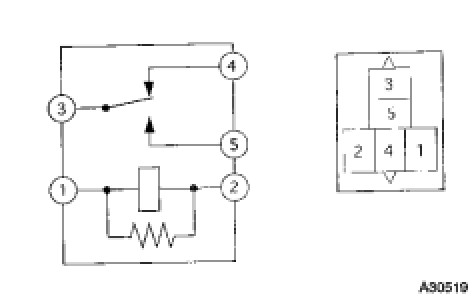

1. INSPECT COOLING FAN RELAY NO. 2





(a) Check the resistance.

(1) Using an ohmmeter, measure the resistance between the terminals.

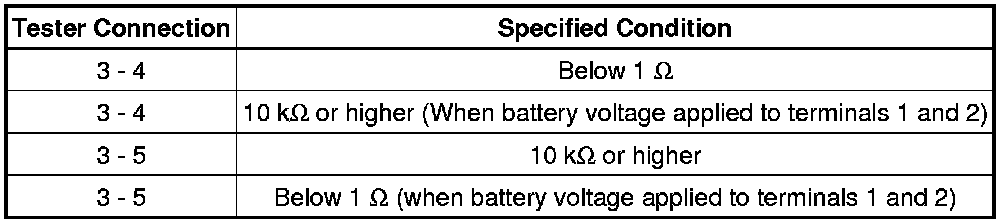

Standard resistance:





(1) If the result is not as specified, replace the relay.
