Inspection

1NZ-FE ENGINE CONTROL SYSTEM: THROTTLE BODY: INSPECTION

1. INSPECT THROTTLE WITH MOTOR BODY ASSEMBLY





(a) Check the resistance.

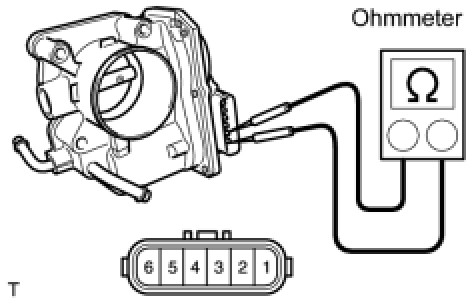

(1) Using an ohmmeter, measure the resistance between the terminals.

Standard resistance:





(1) If the result is not as specified, replace the throttle with motor body assembly.
