Installation

1NZ-FE ENGINE CONTROL SYSTEM: ACCELERATOR PEDAL: INSTALLATION

NOTICE:
* Avoid any physical shock to the accelerator pedal.
* Do not disassemble the accelerator pedal.
1. INSTALL ACCELERATOR PEDAL ASSEMBLY

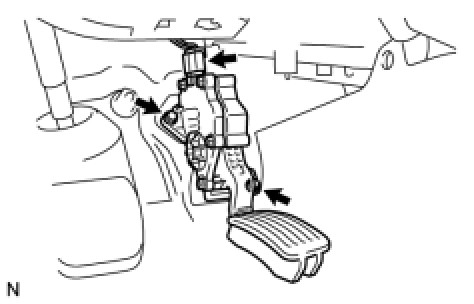

(a) Install the accelerator pedal with the 2 bolts.

Torque : 10 Nm (102 kgf-cm, 7.4 ft-lbf)

(b) Connect the accelerator pedal connector.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
