1NZ-FE EMISSION CONTROL: PCV VALVE: INSTALLATION

1. INSTALL POSITIVE CRANKCASE VENTILATION VALVE (PCV VALVE)





(a) Install the positive crankcase ventilation valve (PCV valve).

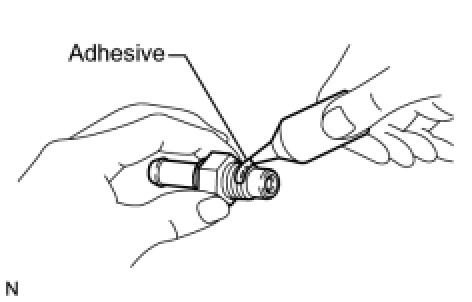

(1) Apply adhesive to the end 2 or 3 threads of the bolt.

Adhesive:

Toyota Genuine Adhesive 1324, Three Bond 1324 or the equivalent.

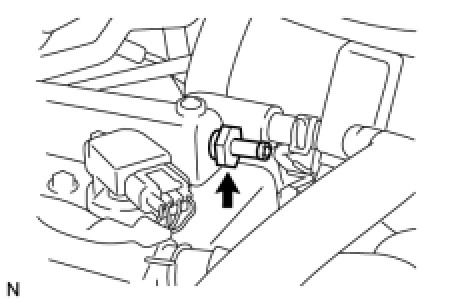

(2) Install the positive crankcase ventilation valve (PCV valve).





Torque : 27 Nm (275 kgf-cm, 20 ft-lbf)

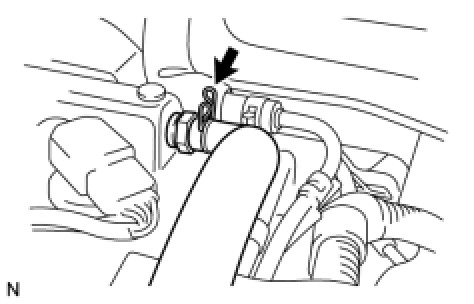

2. CONNECT VENTILATION HOSE





3. INSTALL CYLINDER HEAD COVER NO. 2 Installation
