Installation

1NZ-FE EMISSION CONTROL: CANISTER: INSTALLATION

1. INSTALL CANISTER

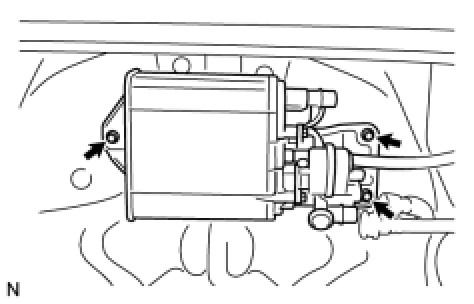

(a) Install the canister with the 3 bolts.

Torque : 19 Nm (194 kgf-cm, 14 ft-lbf)

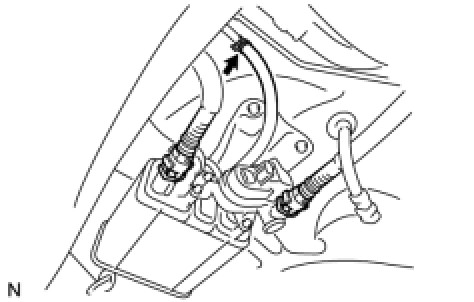

(b) Connect the vent line hose to the canister.





(c) Connect the air inlet line hose to the leak detection pump.

(d) Connect the purge line hose.

(e) Connect the connector.





2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
