Installation

1NZ-FE EMISSION CONTROL: PURGE VALVE: INSTALLATION

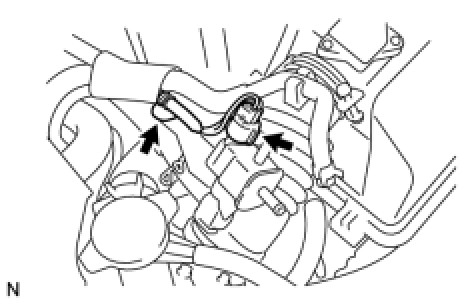

1. INSTALL PURGE VSV





(a) Install the purge VSV.

(b) Engage the clip and connect the purge VSV connector.

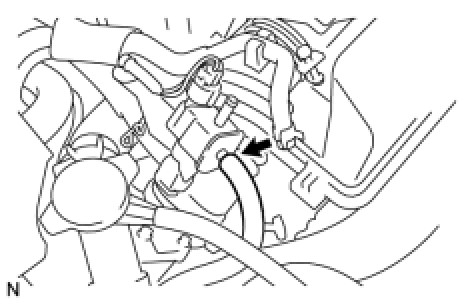

2. CONNECT FUEL VAPOR FEED HOSE NO. 2





(a) Connect fuel vapor feed hose No. 2.

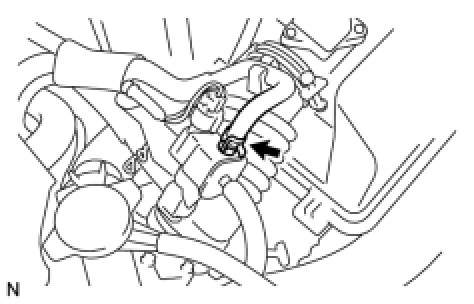

3. CONNECT FUEL VAPOR FEED HOSE NO. 1





(a) Connect fuel vapor feed hose No. 1.

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
